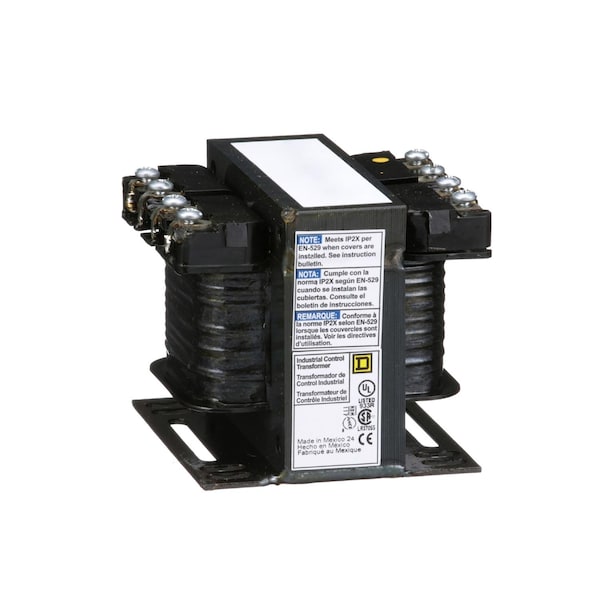

Square D Control Transformer, 50 VA, Not Rated, 120V, 240/480/600V 9070T50D32 - main

Control Transformer, 50 VA, Not Rated, 120V, 240/480/600V

  • Mfr # 9070T50D32

  • Zoro # G0858070

product price:  $132.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
240/480/600V
Output Voltage
120V
Power Rating
50 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070T50D32
Zoro #
G0858070
UPC #
785901039235
Country of Origin
Mexico

Dimensions

Overall Height
2.89 in
Overall Width
3.38 in
Overall Depth
3.34 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
240/480/600V
Output Voltage
120V
Power Rating
50 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
55 deg C
Green Environmental Attribute
Mercury Free; Pvc Free
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Material
Copper: winding
Secondary Connection
Screw clamp terminals
Primary Connection
Screw clamp terminals
Enclosure Type
Open
Insulation Max. Temp.
105 °C
Winding Material - Transformer
Copper
Insulation Temperature
221°F (105°C)
Primary To Secondary Voltage
240/480/600 V 100/120 V; 230/460/575 V 95/115 V; 220/440/550 V 90/110 V
Fingersafe Cover Compatibility
FSC1
Range of Product
T
Rated Power In Va
50 VA UL, 50 VA CSA, 50 VA NOM, 50 VA CE
Primary Voltage
240/480/600 V 100/120 V, 230/460/575 V 95/115 V, 220/440/550 V 90/110 V
Nema Degree of Protection
not rated (open device)
Pvc Free
Yes

Description

Trfmr Control 50Va Multiple Voltages
