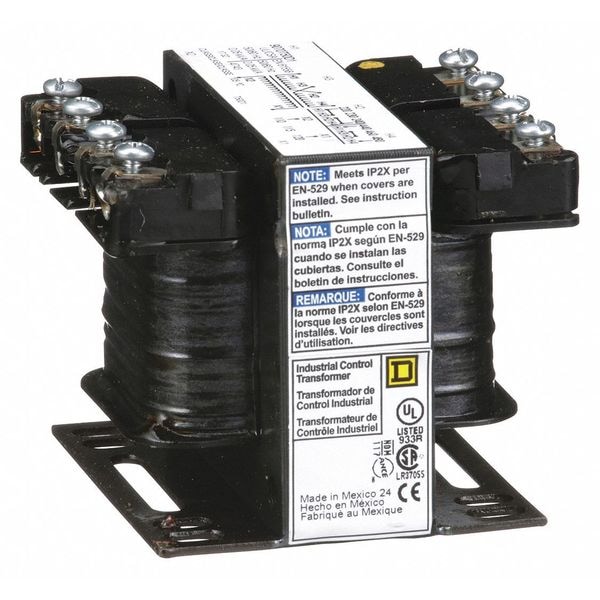

Control Transformer, 50 VA, Not Rated, 120V AC, 240/480V AC
Mfr # 9070T50D1
Zoro # G2936473
Key Features
Specifications
Details
- MFR #
- 9070T50D1
- Zoro #
- G2936473
- UPC #
- 785901904632
- Country of Origin
- Korea, Republic of
- CAD Available
- Yes
- Item
- Control Transformer
- Input Voltage - Transformer
- 240/480V AC
- Output Voltage
- 120V AC
- Power Rating
- 50 VA
- Phase
- Single
- Mounting - Transformer
- Foot
- Hz - Electrical
- 50/60 Hz
- NEMA Enclosure Rating
- Not Rated
- Temperature Rise
- 55 Degrees C
- Enclosure Finish
- Epoxy Resin Varnish
- Standards
- CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
- Protective Device
- None
- Fused
- No
- Enclosure Style - Transformer
- Open
- Green Environmental Attribute
- Mercury Free; Pvc Free
- Secondary Connection
- Screw clamp terminals
- Insulation Max. Temp.
- 105 °C
- Primary Connection
- Screw clamp terminals
- Enclosure Type
- Open
- Winding Material - Transformer
- Copper
- Input Voltage
- 240V AC, 480V AC
- Enclosure Style
- Open
- Frequency
- 50/60 Hz
Description
The Square D by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 50VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
