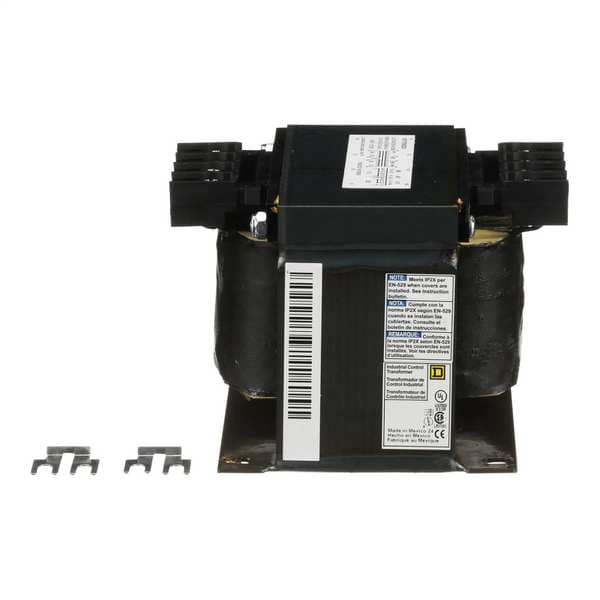

Control Transformer, 500 VA, Not Rated, 120V AC, 208V AC

  • Mfr # 9070T500D3

  • Zoro # G2079777

product price:
$
588.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
208V AC
Output Voltage
120V AC
Power Rating
500 VA
Phase
Single
Mounting - Transformer
Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070T500D3
Zoro #
G2079777
UPC #
785901905677
Country of Origin
Korea, Republic of

Dimensions

Overall Height
3.84 in
Overall Width
4.5 in
Overall Depth
5.49 in
Manufacturers Warranty Length
10 yr

Details

Item
Control Transformer
Input Voltage - Transformer
208V AC
Output Voltage
120V AC
Power Rating
500 VA
Phase
Single
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
115 Degrees C
Enclosure Finish
Epoxy Resin Varnish
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Enclosure Style - Transformer
Open
Protective Device
None
Fused
No
Green Environmental Attribute
Mercury Free; Pvc Free
Insulation Max. Temp.
180 °C
Secondary Connection
Screw clamp terminals
Material
Copper: winding
Primary Connection
Screw clamp terminals
Enclosure Type
Open
Winding Material - Transformer
Copper
Certifications
CSA file LR37055 guide 184-N-90; UL listed file E61239
Insulation Temperature
356°F (180°C)
Primary To Secondary Voltage
208 V 120 V
Fingersafe Cover Compatibility
FSC2
Input Voltage
208V AC
Enclosure Style
Open
Frequency
50/60 Hz

Description

Control Transformer, Input Voltage - Transformer 208V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 500 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish
