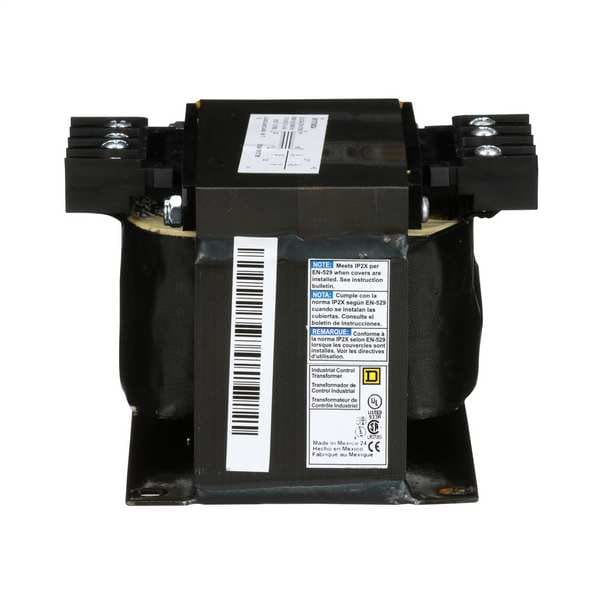

Control Transformer, 500 VA, Not Rated, 120V AC, 277V AC

  • Mfr # 9070T500D4

  • Zoro # G3415343

product price:
$
573.72
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
277V AC
Output Voltage
120V AC
Power Rating
500 VA
Phase
Single
Mounting - Transformer
Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070T500D4
Zoro #
G3415343
UPC #
785901905653
Country of Origin
Korea, Republic of

Dimensions

Overall Height
3.84 in
Overall Width
4.5 in
Overall Depth
5.49 in
Manufacturers Warranty Length
10 yr

Details

Item
Control Transformer
Input Voltage - Transformer
277V AC
Output Voltage
120V AC
Power Rating
500 VA
Phase
Single
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
115 Degrees C
Enclosure Style - Transformer
Open
Enclosure Finish
Epoxy Resin Varnish
Fused
No
Protective Device
None
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Includes
24 in Pre-Wired Primary and Secondary Leads
Green Environmental Attribute
Mercury Free; Pvc Free
Primary Connection
Screw clamp terminals
Secondary Connection
Screw clamp terminals
Insulation Max. Temp.
180 °C
Enclosure Type
Open
Winding Material - Transformer
Copper
Input Voltage
277V AC
Frequency
50/60 Hz
Enclosure Style
Open

Description

Control Transformer, Input Voltage - Transformer 277V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 500 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish
