Definite Purpose Magnetic Contactor, 208V-240V AC, 2 P, Non-Reversing, 1 Phase

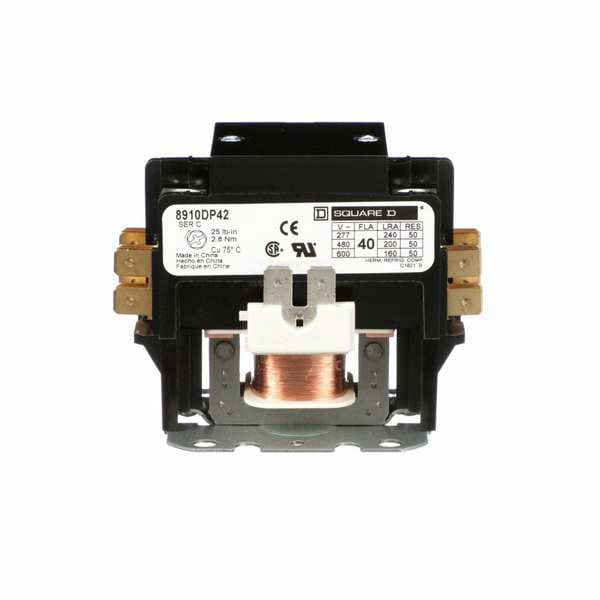

The SQUARE D - 8910DP42V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – this indicates that the current flow direction remains constant.
• Coil Voltage: Operates within a voltage range of 208-240V AC which triggers it to close or open an electrical circuit.
• Depth: The contactor extends 2.22 inches into its mounting surface or enclosure.
• Frequency: Rated for operation within the specified frequency range of 50/60 Hz.
• Full Load Amps-Inductive & Resistive: Rated for operation within the specified current ranges: up to 40A for inductive loads and up to 50A for resistive loads.
• Horsepower @ Single Phase -120V & -240V AC: Compatible with single-phase alternating current systems at the specified voltage levels
• Horsepower @ Three Phase -600V AC: Compatible with three-phase alternating current systems, rated for motors up to a specified limit of 50 horsepower
• Number of Normally Open Main Contacts & Poles: Contains two main contacts that remain open when not powered and can switch two circuits simultaneously offering versatile control in various industrial applications
