  13. Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect
This item is Discontinued.

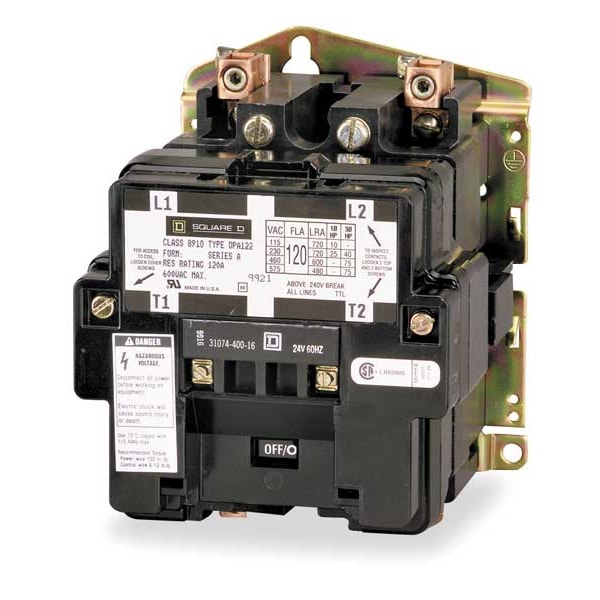

Square D Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect 8910DPA72V14

Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect (Discontinued)

  • Mfr # 8910DPA72V14
  • Zoro # G1760726
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8910DPA72V14
Zoro #
G1760726
UPC #
785901024538
Country of Origin
China

Dimensions

Height
5.2 in
Depth
4.37 in
Width
3.39 in
Mounting Hole Distance - Height
4.63 in
Mounting Hole Distance - Width
2.87 in
Overall Depth
4.37 in
Overall Width
5 in
Mounting Hole Diameter
0.2 in
Overall Height
5.12 in

Details

Item
Definite Purpose Magnetic Contactor
Coil Voltage
24V AC
Series
8910 Type DPA
Number of Poles
2
Reversing Capability
Non-Reversing
Full Load Current - Resistive
94 A
Full Load Current - Inductive
75 A
Phase
1
Terminal Connection Type
Box Lug & Quick Connect
Enclosure Type
Open
Full Load Amps-Resistive
94 A
Action
Non-Reversing
Enclosure NEMA Rating
No Enclosure
Hz
50/60
HP @ 1 Phase - 230V
15
HP @ 1 Phase - 120V
5 hp
Includes
Quick Connect Terminal
Full Load Amps-Inductive
75 A
Reversing
No
Standards
CSA, RoHS, UL Listed
HP @ 1 Phase - 240V
15 hp
Coil Volts
24V AC
Horsepower @ Single Phase - 240V AC
15 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 120V AC
5 hp
Contactor Style
HVACR Definite Purpose Contactor
Horsepower @ Three Phase - 600V AC
50 hp
Locked Rotor Load
300 A @ 575V AC, 375 A @ 460V AC, 450 A @ 277V AC
Number of Normally Open Main Contacts
2
Maximum Voltage Rating
600V AC
Frequency
50/60 Hz
Product Or Component Type
Definite Purpose Contactor
Rated Operational Voltage
600 V AC
Pole Contact Composition
2 NO
Maximum Horse Power Rating
5 hp 115 V AC, 1 phase; 15 hp 230 V AC, 1 phase
Control Circuit Voltage
24 V AC 50/60 Hz
Locked Rotor Rated Current
450 A 277 V AC; 375 A 460 V AC; 300 A 575 V AC
Product Certifications
UL Recognized; CSA
Electrical Connection
Box lugs; Quick connect terminals

Description

Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 24V AC, Series 8910 Series Type DPA, Number of Poles 2, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 15 hp, Horsepower @ Single Phase - 120V AC 5 hp, Full Load Current - Resistive 94 A
