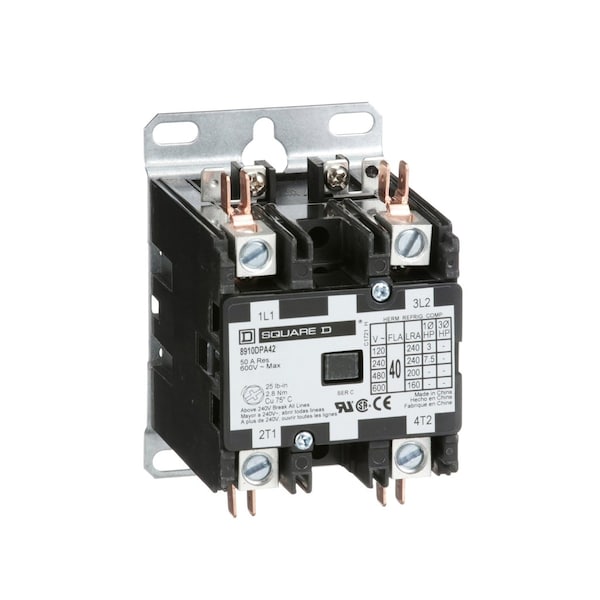

Definite Purpose Magnetic Contactor, 24V AC, 2P, 40A

  • Mfr # 8910DPA42V14

  • Zoro # G805646851

product price:  $79.34
/ea

Key Features

Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
50 A
Action
Non-Reversing
Number of Poles
2
Reversing
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8910DPA42V14
Zoro #
G805646851
UPC #
785901073482
Country of Origin
China

Dimensions

Height
4 in
Width
2.5 in
Depth
3.12 in
Overall Depth
3 in
Overall Height
3.75 in
Mounting Hole Distance - Height
3.25 in
Mounting Hole Distance - Width
2 in
Overall Width
2.37 in
Mounting Hole Diameter
0.2 in

Details

Full Load Amps-Inductive
40 A
Item
Definite Purpose Magnetic Contactor
Full Load Amps-Resistive
50 A
Action
Non-Reversing
Number of Poles
2
Coil Volts
24V AC
Reversing
No
HP @ 1 Phase - 230V
7-1/2
HP @ 1 Phase - 120V
3 hp
HP @ 1 Phase - 240V
7 1/2 hp
Enclosure NEMA Rating
No Enclosure
Series
8910 Series Type DPA
Hz
50/60
Enclosure Type
Open
Includes
Quick Connect Terminal
Standards
CSA, RoHS, UL Listed
Horsepower @ Three Phase - 600V AC
50 hp
NEMA Enclosure Rating
No Enclosure
Phase
Single
Terminal Connection Type
Box Lugs, Quick-Disconnect Terminals
Horsepower @ Single Phase - 120V AC
3 hp
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Full Load Current - Inductive
40 A
Locked Rotor Load
160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 277V AC
Maximum Voltage Rating
600V AC
Reversing Capability
Non-Reversing
Full Load Current - Resistive
50 A
Coil Voltage
24V AC
Contactor Style
HVACR Definite Purpose Contactor
Number of Normally Open Main Contacts
2

Description

Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 24V AC, Series 8910 Series Type DPA, Number of Poles 2, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Single Phase - 120V AC 3 hp, Full Load Current - Resistive 50 A
