Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase

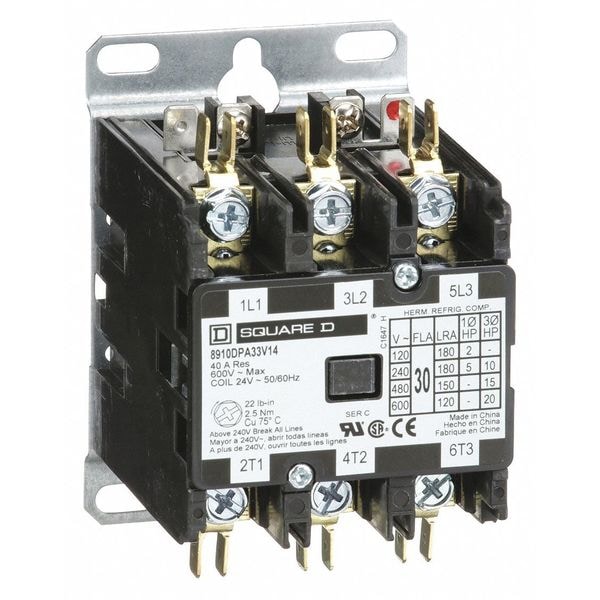

The SQUARE D - 8910DPA33V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Coil Voltage: Rated for operation within the specified voltage range of 24V AC.
• Depth: Extends into mounting surface or enclosure up to 3.12 inches.
• Enclosure Type: Open – No additional protective casing against environmental factors such as dust and moisture.
• Frequency: Rated for operation within the specified frequency ranges of 50/60 Hz
• Full Load Amps-Inductive & Resistive: Compatible with maximum currents up to 30A for inductive loads and up to 40A for resistive loads under normal operating conditions.
• Horsepower @ Single Phase & Three Phase - Horsepower capacity varies based on whether it's connected to a single-phase or three-phase power supply, rated between voltages of 120V and up to a maximum of 600V AC.
• Number of Normally Open Main Contacts & Poles: Contains three main contacts that remain open when not powered and can switch three circuits simultaneously
