  15. Disconnect Switch, 3P, Three Phase, NEMA 12, Indoor, Rotary Handle, PBT

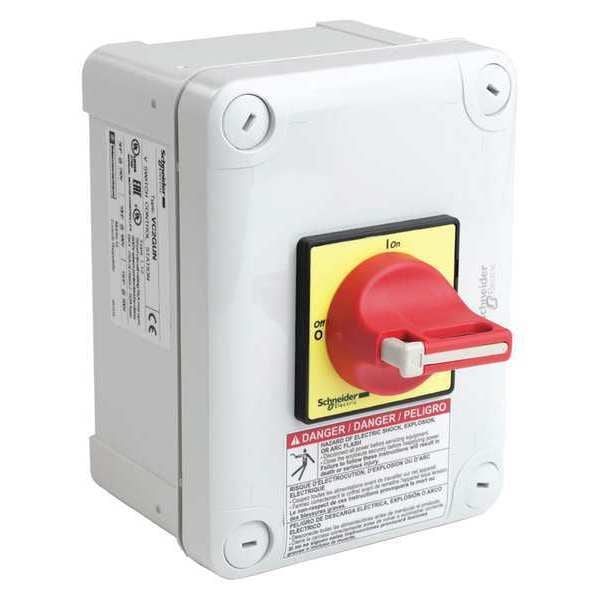

Square D Disconnect Switch, 3P, Three Phase, NEMA 12, Indoor, Rotary Handle, PBT VC2GUN - main

Disconnect Switch, 3P, Three Phase, NEMA 12, Indoor, Rotary Handle, PBT

  • Mfr # VC2GUN

  • Zoro # G0561325

product price: $267.19
/ea
Free Shipping & Returns

Key Features

Contact Form
3P
Current Rating
25 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VC2GUN
Zoro #
G0561325
UPC #
785901664161
Country of Origin
Czechia

Dimensions

Width
121 mm
Height
164 mm
Depth
132 mm
Base Dimension
60 x 60 mm

Details

Item
Disconnect Switch
Contact Form
3P
Current Rating
25 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 12
HP
15 HP @ 600 V
Voltage
690 V
Handle Color
Yellow
Handle Type
Rotary Handle
Housing Material
PBT
Standards
IEC 60204 || CSA C22.2 No 14 || UL 508 || IEC 60947-4-1
Amps
25 A
Number of Poles
3
Mechanical Durability
100000 cycles
Electrical Durability
100000 cycles AC-21 || 30000 cycles DC-1...5
Ip Degree Of Protection
IP65 conforming to IEC 60529
Intermittent Duty Class
30
Tightening Torque
2.1-2.1 N.m screw clamp terminals
Fire Resistance
960°C IEC 60595-2-1
Breaking Capacity
320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A)
Rated Operational Power In W
15 kW 400 V AC-23) || 11 kW 400 V AC-3)
Range
TeSys
Making Capacity
400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Performance Level
high performance
Marking
0 - 1
Mechanical Robustness
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Suitability For Isolation
yes
Device Short Name
VC-GUN
Product Name
TeSys VARIO
Poles Description
3P
Protective Treatment
TC
Product Or Component Type
enclosed emergency stop switch disconnector
Rated Conditional Short-Circuit Current
10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG
Ambient Air Temperature For Operation
-20-50°C
Connections - Terminals
screw clamp terminals 10-10 mm² solid - with cable end || screw clamp terminals 6-6 mm² flexible
Rated Power In Hp
5 hp 240 V, UL || 10 hp 480 V, UL || 15 hp 600 V, UL
Conventional Enclosed Thermal Current
32 A
Rated Conditional Short Circuit Current
10 kA 400 V 50 A aM; 10 kA 400 V 50 A gG
Conventional Free Air Thermal Current
32.0 A IEC 690 V; 25 A UL 600 V

Description

Enclosed Switch/25 Ampere
