  15. Disconnect Switch, 3P, Three Phase, NEMA 12, Indoor, Rotary Handle, PBT

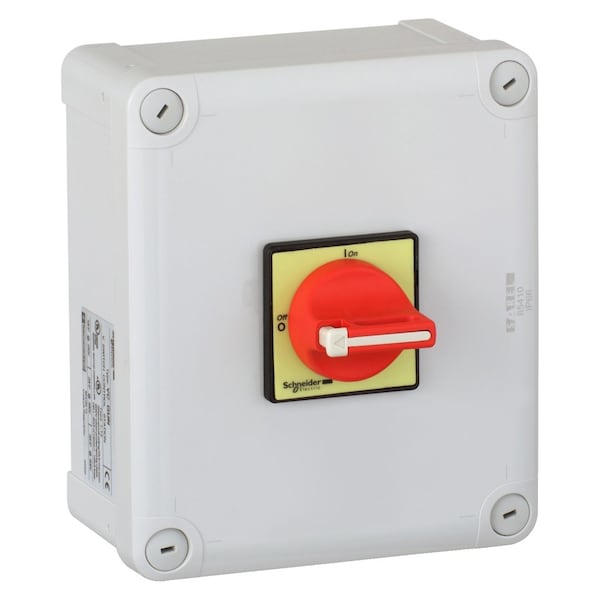

Square D Disconnect Switch, 3P, Three Phase, NEMA 12, Indoor, Rotary Handle, PBT VC3GUN - main

Disconnect Switch, 3P, Three Phase, NEMA 12, Indoor, Rotary Handle, PBT

  • Mfr # VC3GUN

  • Zoro # G0561340

product price: $328.99
/ea
Free Shipping & Returns

Key Features

Contact Form
3P
Current Rating
45 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VC3GUN
Zoro #
G0561340
UPC #
785901982494
Country of Origin
Czechia

Dimensions

Width
164 mm
Depth
132 mm
Height
193 mm
Base Dimension
60 x 60 mm

Details

Item
Disconnect Switch
Contact Form
3P
Current Rating
45 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 12
HP
30 HP @ 600 V
Voltage
690 V
Handle Color
Yellow
Handle Type
Rotary Handle
Housing Material
PBT
Standards
IEC 60947-4-1 || CSA C22.2 No 14 || UL 508 || IEC 60204
Amps
45 A
Number of Poles
3
Mechanical Durability
30000 cycles
Electrical Durability
30000 cycles AC-21 || 30000 cycles DC-1...5
Rated Conditional Short-Circuit Current
10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
Protective Treatment
TC
Poles Description
3P
Mechanical Robustness
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Fire Resistance
960°C IEC 60595-2-1
Marking
0 - 1
Intermittent Duty Class
30
Ambient Air Temperature For Operation
-20-50°C
Performance Level
high performance
Making Capacity
630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
Tightening Torque
4-4 N.m screw clamp terminals
Product Name
TeSys VARIO
Rated Operational Power In W
22 kW 400 V AC-23) || 18.5 kW 400 V AC-3)
Product Or Component Type
enclosed emergency stop switch disconnector
Device Short Name
VC-GUN
Ip Degree Of Protection
IP65 conforming to IEC 60529
Range
TeSys
Suitability For Isolation
yes
Rated Power In Hp
10 hp 240 V, UL || 20 hp 480 V, UL || 30 hp 600 V, UL
Connections - Terminals
screw clamp terminals 25-25 mm² solid - with cable end || screw clamp terminals 16-16 mm² flexible
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Breaking Capacity
500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)
Conventional Enclosed Thermal Current
50 A
Conventional Free Air Thermal Current
50.0 A IEC 690 V; 45 A UL 600 V
Rated Conditional Short Circuit Current
10 kA 400 V 63 A aM; 10 kA 400 V 63 A gG

Description

Enclosed Switch 45 A
