Shop SQUARE D

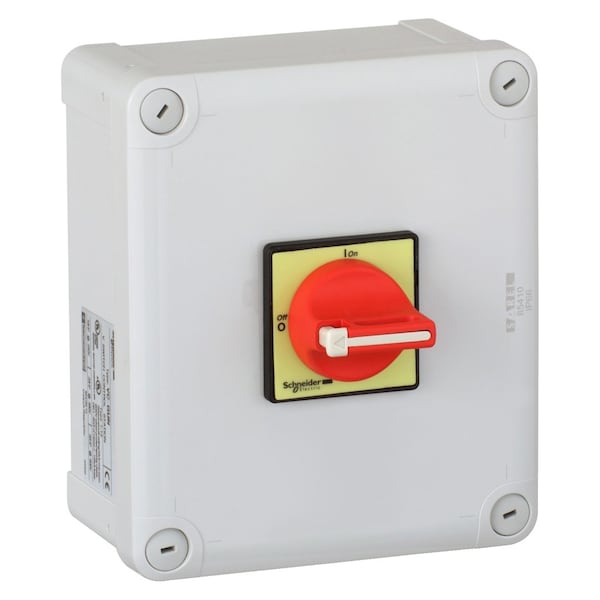

Disconnect Switch, Three Phase, NEMA 12, Indoor, Rotary Handle

  • Mfr # VC4GUN

  • Zoro # G0561359

product price:  $375.99
/ea
Free Shipping & Returns

Key Features

Contact Form
3P
Current Rating
63 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 12
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VC4GUN
Zoro #
G0561359
UPC #
785901676331
Country of Origin
Korea, Republic of

Dimensions

Width
164 mm
Depth
132 mm
Height
193 mm
Base Dimension
60 x 60 mm

Details

Item
Disconnect Switch
Contact Form
3P
Current Rating
63 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 12
HP
15 HP @ 240 V, 30 HP @ 480 V, 40 HP @ 600 V
Voltage
690 V
Handle Color
Yellow
Handle Type
Rotary Handle
Housing Material
PBT
Standards
UL 508 || CSA C22.2 No 14 || IEC 60947-4-1 || IEC 60204
Number of Poles
3
Amps
63 A
Electrical Durability
30000 cycles AC-21 || 30000 cycles DC-1...5
Mechanical Durability
30000 cycles
Rated Conditional Short-Circuit Current
10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG
Rated Operational Power In W
30 kW 400 V AC-23) || 22 kW 400 V AC-3)
Ip Degree Of Protection
IP65 conforming to IEC 60529
Protective Treatment
TC
Ambient Air Temperature For Operation
-20-50°C
Performance Level
high performance
Fire Resistance
960°C IEC 60595-2-1
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Marking
0 - 1
Suitability For Isolation
yes
Breaking Capacity
640 A 400 V AC-21A) || 640 A 400 V AC-22A) || 640 A 400 V AC-23A)
Making Capacity
800 A 400 V AC-21A || 800 A 400 V AC-22A || 800 A 400 V AC-23A
Intermittent Duty Class
30
Connections - Terminals
screw clamp terminals 25-25 mm² solid - with cable end || screw clamp terminals 16-16 mm² flexible
Device Short Name
VC-GUN
Tightening Torque
4-4 N.m screw clamp terminals
Mechanical Robustness
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Rated Power In Hp
15 hp 240 V, UL || 30 hp 480 V, UL || 40 hp 600 V, UL
Product Name
TeSys VARIO
Range
TeSys
Product Or Component Type
enclosed emergency stop switch disconnector
Poles Description
3P
Conventional Free Air Thermal Current
63.0 A IEC 690 V; 63 A UL 600 V
Rated Conditional Short Circuit Current
10 kA 400 V 80 A aM; 10 kA 400 V 80 A gG

Description

Enclosed Switch 63 A
