  15. Fusible, Disconnect Switch, General Duty, 240 V, 3PST, Indoor/Outdoor

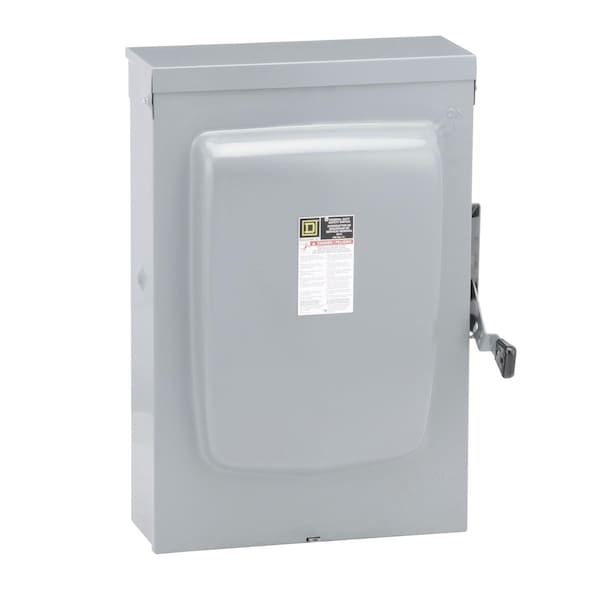

Square D Fusible, Disconnect Switch, General Duty, 240 V, 3PST, Indoor/Outdoor D326NTR - main

Fusible, Disconnect Switch, General Duty, 240 V, 3PST, Indoor/Outdoor

  • Mfr # D326NTR

  • Zoro # G700422932

product price: $8,277.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Fusible
Contact Form
3PST
Current Rating
600 A
Phase
Three
For Fuse Class
Class T
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D326NTR
Zoro #
G700422932
UPC #
-
Country of Origin
Mexico

Dimensions

Width
25.13 in
Height
49.13 in
Depth
8.88 in

Details

Item
Disconnect Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
600 A
Phase
Three
For Fuse Class
Class T
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
75 HP @ 240 V
Voltage
240 V
Standards
UL Listed
Number of Poles
3
Duty
General
Amps AC
600 A
Weight
50 kg
Gauge/Conductor
4 AWG to 500 kcmil
Electrical Connection
Lugs
Mounting
Surface
Features
Mercury Free, PVC Free
Number Of Wires
4
Awg Gauge
AWG 4...500 kcmil aluminium/copper
Motor Power Hp
75 hp at 240 V AC 60 Hz for 3 phase motors
Device Composition
neutral (factory installed)
Wiring Configuration
4-wire (3PH + G)
Pvc Free
Yes
Short-Circuit Current
100 kA T
Disconnector Device Type
fusible disconnect switch
Tightening Torque
450-450 lbf.in (AWG 4...500 kcmil)
Device Application
residential
Series Name
general duty

Description

SWITCH FUSIBLE GD 240V 600A 3P NEMA3R
