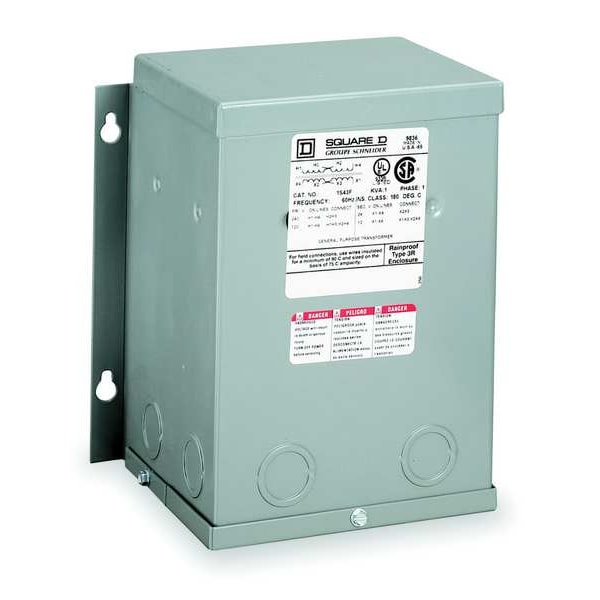

General Purpose Transformer, 10 kVA, NEMA 3R, 120/240V AC, 480V AC
Mfr # 10S40F
Zoro # G8561901
CAD Available
product price: $2,555.99
/ea
Additional $145.00 delivery surcharge applies per item.
Key Features
CAD Drawing
Input Voltage - Transformer
480V AC
Output Voltage
120/240V AC
Power Rating
10 kVA
Phase
1
Mounting - Transformer
Wall
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
10S40F
Zoro #
G8561901
UPC #
785901359593
Country of Origin
Mexico
Dimensions
Overall Height
14 3/4 in
Overall Width
9 3/4 in
Overall Depth
11 3/4 in
Width
9.75 in
Manufacturers Warranty Length
1 yr
Knockout Size - Transformer
3/4 in, 1 in
Depth
11.75 in
Height
14.75 in
Description
Dry Type Power Distribution Transformer, Input Voltage - Transformer 480V AC, Output Voltage - Transformer 120V AC, 240V AC, VA Rating - Transformer 10 kVA, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Down, Winding Material - Transformer Copper, Hz - Electrical 60 Hz, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP14
