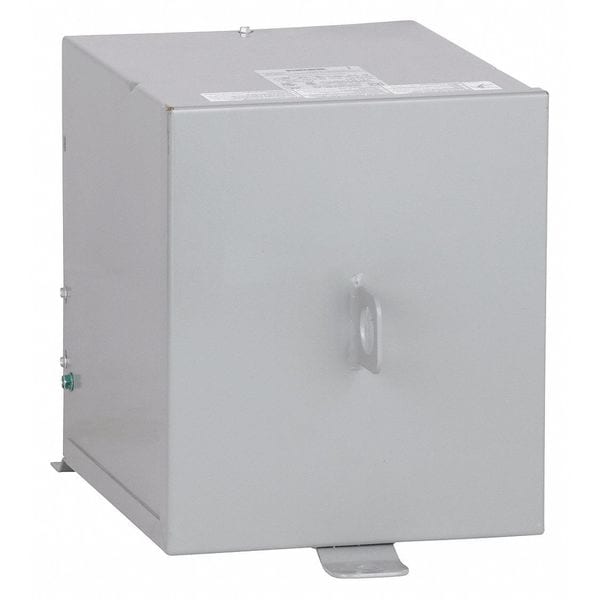

General Purpose Transformer, 5 kVA, NEMA 3R, 120/240V AC, 240/480V AC

  • Mfr # 5S1F

  • Zoro # G0851426

CAD Available
product price:  $980.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

CAD Drawing
Input Voltage - Transformer
240/480V AC
Output Voltage
120V AC, 240V AC
Power Rating
5 kVA
Phase
Single
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5S1F
Zoro #
G0851426
UPC #
785901359425
Country of Origin
Korea, Republic of

Dimensions

Overall Height
14.75 in
Overall Width
9.75 in
Overall Depth
11.75 in
Knockout Size - Transformer
1/2 in, 3/4 in
Manufacturers Warranty Length
1 yr
Width
9.8 in
Depth
11.8 in
Height
14.8 in
Knockout Size
1/2 in, 3/4 in

Details

CAD Available
Yes
Item
General Purpose Transformer
Input Voltage - Transformer
240/480V AC
Output Voltage
120V AC, 240V AC
Power Rating
5 kVA
Phase
Single
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
3R
IP Rating
IP14
Outdoor Rated - Transformer
Yes
Winding Material
Aluminum
Color
Gray
Temperature Rise
115 Degrees C
Winding Material - Transformer
Aluminum
Enclosure Rating
NEMA 3R
Phase - Electrical
Single
Standards
CSA Certified, cULus, REACH Regulation, RoHS, UL Listed
Enclosure Material
Steel
Output Voltage - Transformer
120V AC, 240V AC
VA Rating - Transformer
5 kVA
Enclosure Finish
Painted
Voltage Function - Transformer
Step Down
Temp. Rise
115 Degrees C
Insulation Max. Temp.
180 °C
Product Certifications
UL Listed; CSA; cULus
Enclosure Code
13B
Insulation Temperature
356 Degrees F (180 Degrees C)
Primary To Secondary Voltage
240 x 480 V 120/240 V
Includes Knockouts
Knockouts Included
Sound Level
37 dB
Input Voltage
240V AC, 480V AC
Voltage Function
Step Down
Frequency
60 Hz

Description

Dry Type Power Distribution Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, 240V AC, VA Rating - Transformer 5 kVA, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Down, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP14
