  11. General Purpose Transformer, 6 kVA, NEMA 3R, 120/208V AC, 480V AC

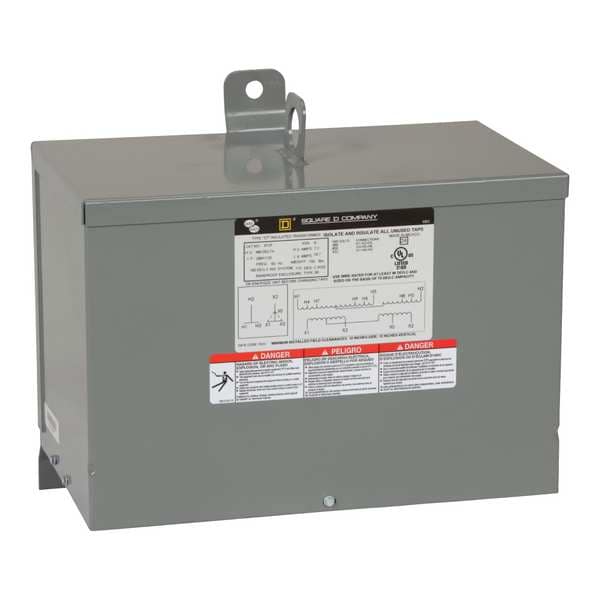

Square D General Purpose Transformer, 6 kVA, NEMA 3R, 120/208V AC, 480V AC 6T2F - main

CAD Drawings

Download CAD Files

General Purpose Transformer, 6 kVA, NEMA 3R, 120/208V AC, 480V AC

  • Mfr # 6T2F

  • Zoro # G1929033

CAD Available
product price: $1,769.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

CAD Drawing
Input Voltage - Transformer
480V AC
Output Voltage
120/208V AC
Power Rating
6 kVA
Phase
3
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6T2F
Zoro #
G1929033
UPC #
785901359470
Country of Origin
Mexico

Dimensions

Overall Height
13 1/2 in
Overall Width
14 3/4 in
Overall Depth
9 in
Knockout Size - Transformer
1 in, 3/4 in

Details

Item
General Purpose Transformer
Input Voltage - Transformer
480V AC
Output Voltage
120/208V AC
Power Rating
6 kVA
Phase
3
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
NEMA 3R
IP Rating
IP54
Outdoor Rated - Transformer
Yes
Winding Material
Copper
Color
Gray
Standards
CSA Certified, cULus, REACH Regulation, RoHS, UL Listed
Enclosure Finish
Painted
Winding Material - Transformer
Copper
Enclosure Material
Steel
Voltage Function - Transformer
Step Down
Product Certifications
cULus, CSA, UL Listed
Number Of Tap-Offs
2 5 % FCBN
Insulation Temperature
180 Degrees C
Temperature Rise
115°C
Rated Power In Va
6 kVA
Primary Voltage
480 V delta 208Y/120 V
Sound Level
37 dB
Includes Knockouts
Knockouts Included
CAD Available
Yes

Description

Dry Type Power Distribution Transformer, Input Voltage - Transformer 480V AC Delta, Output Voltage - Transformer 120V AC, 208V AC Wye, VA Rating - Transformer 6 kVA, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Down, Winding Material - Transformer Copper, Hz - Electrical 60 Hz, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP54
