  11. General Purpose Transformer, 9 kVA, NEMA 3R, 120/208V AC, 480V AC

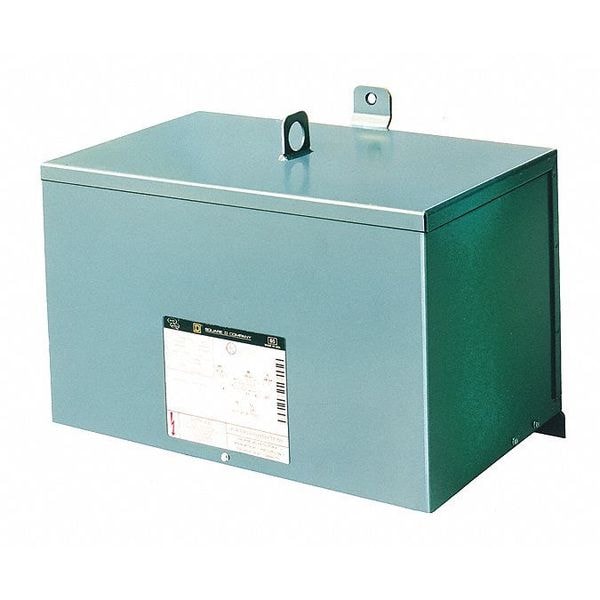

Square D General Purpose Transformer, 9 kVA, NEMA 3R, 120/208V AC, 480V AC 9T2F - main

CAD Drawings

Download CAD Files

General Purpose Transformer, 9 kVA, NEMA 3R, 120/208V AC, 480V AC

  • Mfr # 9T2F

  • Zoro # G2146864

CAD Available
product price: $4,056.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.

Key Features

CAD Drawing
Input Voltage - Transformer
480V AC
Output Voltage
120/208V AC
Power Rating
9 kVA
Phase
3
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9T2F
Zoro #
G2146864
UPC #
785901359494
Country of Origin
Mexico

Dimensions

Overall Height
14 3/4 in
Overall Width
19.1 in
Overall Depth
12 1/4 in
Knockout Size - Transformer
1 in, 3/4 in

Details

CAD Available
Yes
Item
General Purpose Transformer
Input Voltage - Transformer
480V AC
Output Voltage
120/208V AC
Power Rating
9 kVA
Phase
3
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
NEMA 3R
IP Rating
IP54
Outdoor Rated - Transformer
Yes
Winding Material
Copper
Color
Gray
Winding Material - Transformer
Copper
Voltage Function - Transformer
Step Down
Standards
CSA Certified, cULus, REACH Regulation, RoHS, UL Listed
Enclosure Finish
Painted
Enclosure Material
Steel
Primary Voltage
480 V delta 208Y/120 V
Temperature Rise
115°C
Insulation Temperature
180 Degrees C
Rated Power In Va
9 kVA
Number Of Tap-Offs
2 5 % FCBN
Product Certifications
UL Listed, CSA, cULus
Full Capacity Taps
2 5% FCBN
Enclosure Code
14C
Sound Level
37 dB
Includes Knockouts
Knockouts Included

Description

Dry Type Power Distribution Transformer, Input Voltage - Transformer 480V AC Delta, Output Voltage - Transformer 120V AC, 208V AC Wye, VA Rating - Transformer 9 kVA, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Down, Winding Material - Transformer Copper, Hz - Electrical 60 Hz, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP54
