  13. GeneralPurpose Relay, 120VAC, 10A, 11Pins

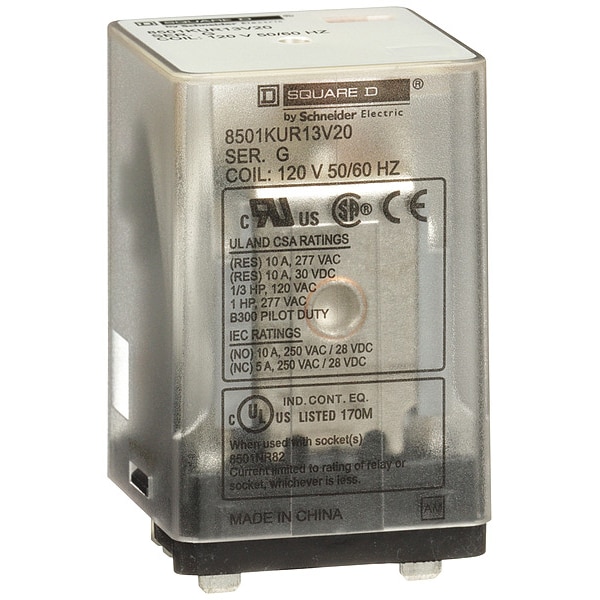

Square D GeneralPurpose Relay, 120VAC, 10A, 11Pins 8501KUR13V20 - main

GeneralPurpose Relay, 120VAC, 10A, 11Pins

  • Mfr # 8501KUR13V20

  • Zoro # G1382231

product price: $40.55
/ea

Key Features

Item - Relay
General Purpose Relay
Mounting - Relay
Plug In
Number of Pins - Relay
11
Socket Code
C
AC Contact Rating - Relay
10A @ 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501KUR13V20
Zoro #
G1382231
UPC #
785901978831
Country of Origin
China

Dimensions

Depth
1.4 in
Body Depth - Relay
1.4 in
Body Width - Relay
1.4 in
Width
1.37 in
Body Height - Relay
2.66 in
Overall Height - Relay
2.66 in
Flat Pin Width
0.189 in
Body Height
2.67 in
Body Width
1.37 in
Body Depth
2.12 in
Overall Depth
2.66 in
Height
2.25 in

Details

Item - Relay
General Purpose Relay
Mounting - Relay
Plug In
Number of Pins - Relay
11
Socket Code
C
AC Contact Rating - Relay
10A @ 300V
Contact Material
Silver Alloy
Item
General Purpose Relay
Push To Test
No
Power Consumption - Relay
3 VA
HP @ 240V
Not Rated
Standards
CE Certified, CSA Certified, UL Listed
Contact Form - Relay
3PDT
Contact Form
3PDT
DC Contact Rating - Relay
5A @ 30V
HP @ 120V
5/16 hp
Number of Pins
11
Status Indicator
Mechanical Flag
Coil Volts
120V AC
Coil Voltage
120V AC
Maximum Switching Voltage
300V AC, 30V DC
Electrical Connection
Quick-Connect
Pin Shape
Flat
Mounting Style
Socket
Minimum Operating Temperature
-40 Degrees F
Contact Rating (AC)
10 A @ 300V
Current Rating
10 A
Base Shape
Square
Series
Square D 8501K Series
Horsepower @ 240V AC
Not Rated
Compatible with Manufacturer Model Number
8501NR82
Sealing
Enclosed
Response Time
20 msec
Power Consumption
3 VA
Motor Rated
Yes
Maximum Operating Temperature
131 Degrees F
Contact Rating (DC)
5 A @ 30V
Push-To-Test Method
No Button
Horsepower @ 120V AC
1/3 hp
Compatible Manufacturer Part Number
8501NR82
Compatible Manufacturer Model Number
8501NR82
For Use With Mfr. Model Number
8501NR82
Operating Time
20 ms - pick-up || 20 ms - drop-out
Product Certifications
UL Listed || UL Recognized || CSA || CE
Contacts Material
silver alloy (AgNi)
[Uc] Control Circuit Voltage
120 V AC
Product Or Component Type
relay
Local Signalling
no indicator
Relay Type
general purpose
Ambient Temperature Range - Operational
-40 to 131°F (-40 to 55°C)
Switch Function
3PDT
Shape Of Pin
spade
Breaking Capacity
3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 10 A 30 V DC resistive control circuit UL 508
Product Compatibility
8501NR82
Ambient Air Temperature For Operation
-40-131°F
Horsepower Rating
1 hp 277 V AC; 0.33 hp 120 V AC
Rated Power In Hp
1 hp 277 V AC || 0.33 hp 120 V AC
Mounting Support
socket
Rated Breaking Capacity
3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508
Compatible with Manufacturer Model No.
8501NR82
Compatible with Mfr. Model No.
8501NR82
For Use with Mfr Model Number
8501NR82
Compatible Pump Manufacturer Part Number
8501NR82
Compatible Mfr. Model Number
8501NR82

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 300V, Contact Rating (DC) 5 A @ 30V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC Not Rated, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 2.12 in, Body Height 2.67 in, Body Width 1.37 in
