Square D Ground Bar Kit, Square D QO, HOM, NQOD and NF Panelboards, 225A PK23GTAL - main

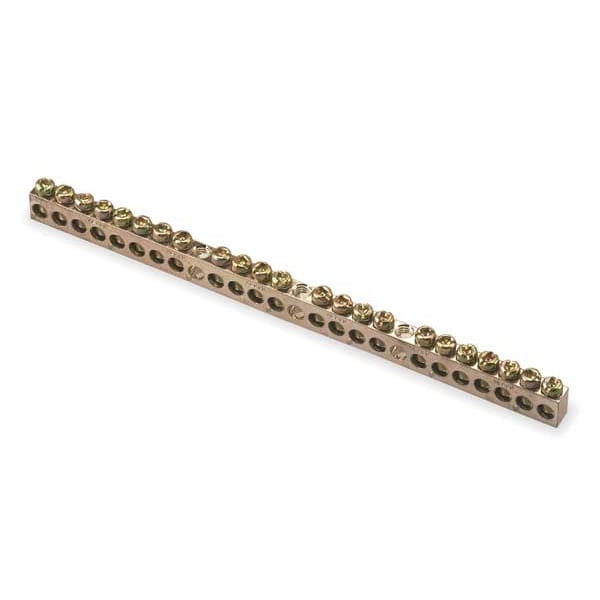

Ground Bar Kit, Square D QO, HOM, NQOD and NF Panelboards, 225A

  • Mfr # PK23GTAL

  • Zoro # G2582763

product price:  $33.59
/ea

Key Features

For Use With
Square D QO, HOM, NQOD and NF Panelboards
Amps
225A
Max. Wire Size
4/0 AWG
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Material of Construction
Tin-Plated Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PK23GTAL
Zoro #
G2582763
UPC #
785901440895
Country of Origin
United States

Dimensions

Max. Wire Size
4/0 AWG
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Height
.437 in
Depth
0.312 in
Bar Length
9.45 in (240 mm)
Maximum Length Of Segment
3.15 in (80 mm)
Wire Size
AWG 14 to AWG 4 copper; AWG 12 to AWG 4 aluminium; AWG 4 to AWG 1 aluminium/copper

Details

Item
Ground Bar Kit
For Use With
Square D QO, HOM, NQOD and NF Panelboards
Amps
225A
Material of Construction
Tin-Plated Aluminum
Number of Terminals
24
Type
Panelboard
Amps AC
225
Includes
(1) Grounding Lug Connector Assembly, (2) Screws
Material
Tin Plated Aluminum
Mounting Style
direct mounting back of enclosure
Features
Mercury Free
Provided Equipment
2 screw
Product Line
QO
Tightening Torque
30 lb.in; Mounting screw 30 lb.in; 20 lb.in, AWG 14 to AWG 10, copper; 20 lb.in, AWG 12 to AWG 10, aluminium; 35 lb.in, AWG 6 to AWG 4; 25 lb.in, AWG 8; 25 lb.in, AWG 14 to AWG 12, copper; 25 lb.in, AWG 12 to AWG 10, aluminium

Description

Ground Bar Kit, 225 A Amps, Number of Terminals 24, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 4/0 AWG, For Use With Square D QO, HOM, NQOD and NF Panelboards, Includes (1) Grounding Lug Connector Assembly, (2) Screws, Material Tin Plated Aluminum
