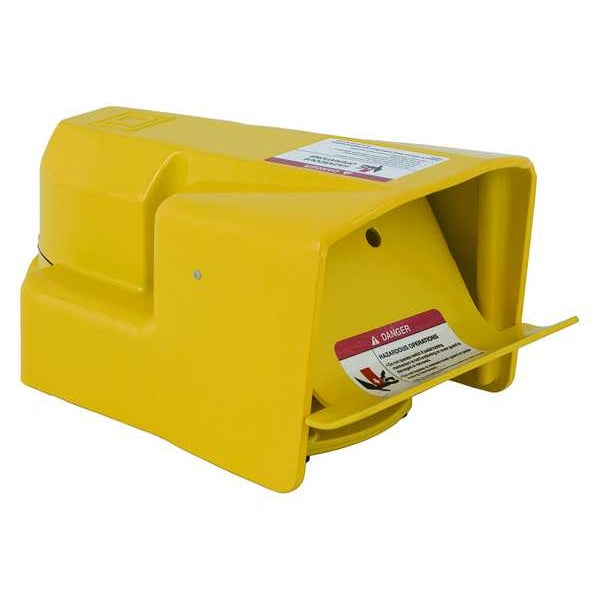

Square D Heavy Duty Foot Switch, Momentary Action 9002AW117 - main

Heavy Duty Foot Switch, Momentary Action

  • Mfr # 9002AW117

  • Zoro # G1614943

product price: $675.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPST
NEMA Rating
13, 2, 4
Voltage Rating
120 to 600V AC
Color
Yellow
Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9002AW117
Zoro #
G1614943
UPC #
785901652410
Country of Origin
Mexico

Dimensions

Width
6 13/32 in
Depth
6 17/64 in
Length
11 1/8 in
Length (Straight Wireway)
11 1/8 in
Height
6.26 in (159 mm)
Overall Depth
8.54 in
Manufacturer Warranty Length
18 mo
Overall Width
6.42 in
Overall Height
6.26 in

Details

Item
Foot Switch
Contact Form
SPST
NEMA Rating
13, 2, 4
Voltage Rating
120 to 600V AC
Color
Yellow
Material
Steel
Current Rating
15
Action
Momentary
Footnotes
5,6
Features
0.75 in NPT Conduit Tread, No Shielding
IP Rating
Not Rated
Standards
CSA, RoHS, UL Listed
Product Type
Foot Switch
Certifications
UL Listed; CSA
Cable Entry
0.75 in NPT conduit entrance
Enclosure Rating
NEMA 2/4/13
Operator Action
Spring return
Rated Breaking Capacity
15 A 120 V AC inductive control circuit UL 508; 10 A 240 V AC inductive control circuit UL 508; 6 A 480 V AC inductive control circuit UL 508; 5 A 600 V AC inductive control circuit UL 508; 15 A 120 V AC resistive control circuit UL 508; 0.5 A 125 V DC resistive control circuit UL 508
Protection
Oversized pedal shield; Safety door; Side shield
Contact Operation
1 step
NEMA Enclosure Rating
13, 2, 4
Power Source
Electrically Corded
Series
9002AW
Number of Pedals
1
Includes Potentiometer
No Potentiometer Included
DC Contact Rating
0.02 A @ 600 V, 0.2 A @ 250 V, 0.5 A @ 125 V
Includes Foot Guard
Guard Included
Hazardous Location Specification
Not Rated
Termination Connection Type
Screw Terminal
AC Contact Rating
10 A @ 240 V, 15 A @ 120 V, 5 A @ 600 V, 6 A @ 480 V

Description

Foot Switch, SPST Contact Form, Voltage Rating 120 to 600V AC, NEMA Rating 13, 2, 4, Current Rating 15, Material Steel, Color Yellow, Momentary Action, Length 11 1/8 in, Width 6 13/32 in, Depth 6 17/64 in, Cord Length Not Applicable, IP Rating Not Rated, Features 0.75 in NPT Conduit Tread, No Shielding, Standards CSA, RoHS, UL Listed
