Item

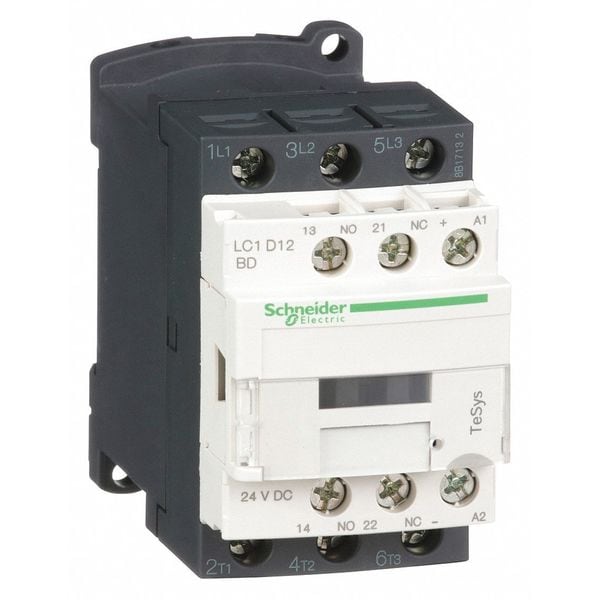

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
HP @ 3 Phase - 575V
10 hp
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Electrical Durability
2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (12 A, AC-3e, Less than 440 V)
Signalling Circuit Frequency
25 to 400 Hz
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Short-Time Withstand Current
105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Mechanical Durability
30 Mcycles
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Operating Time
53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Features
With Integral Suppression Device
Overvoltage Category
CAT III
Switching Current
5 mA (Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Max. Operating Watts
3 kW (at 220 to 230V AC 50/60 Hz AC-3), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3), 7.5 kW (at 500V AC 50/60 Hz AC-3), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 3.7 kW (at 400V AC 50/60 Hz AC-4), 3 kW (at 220 to 230V AC 50/60 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3e), 7.5 kW (at 500V AC 50/60 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Impulse Withstand Voltage
6 kV
Includes Protective Cover
Yes
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Operating Speed
3600 cycles per hr
Rated Insulation Volts
600/690V
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Switching Voltage
17 V (Signalling Circuit)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Rated Breaking Capacity
250 A @ 440V
Application
Motor Control, Resistive Load
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 600V AC
10 hp
Embedded Surge Suppressor
Yes
Includes Auxiliary Contacts
Yes
Mechanical Operating Durability
30,000,000
Horsepower @ Single Phase - 120V AC
1/2 hp
NEMA Enclosure Rating
No Enclosure
Electrical Operating Durability
2,000,000, 800,000
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Full Load Current - Resistive
25 A
Mounting Style
DIN Rail, Plate
Horsepower @ Single Phase - 240V AC
2 hp
Full Load Current - Inductive
12:00 AM
Maximum Voltage Rating
690V AC
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 208V AC
3 hp
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Fire Resistant, Insulation Resistant
Contactor Application
Resistive load; Motor control
Hold-In Power Consumption in W
5.4 W 68°F (20°C)
Rated Operational Current
25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Protective Treatment
THIEC 60068-2-30
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Operating Altitude
0 to 9842.52 ft (0 to 3000 m)
Conventional Free Air Thermal Current
25 A (at 140°F (60°C)) for power circuit; 10 A (at 140°F (60°C)) for signalling circuit
Mechanical Robustness
Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor open 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms)
Climatic Withstand
IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
Utilisation Category
AC-1; AC-4; AC-3; AC-3e
Inrush Power in W
5.4 W 68°F (20°C)
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Control Circuit Type
DC standard
Rated Operational Voltage
Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Power Dissipation Per Pole
0.36 W AC-3; 1.56 W AC-1; 0.36 W AC-3e
Pole Contact Composition
3 NO
Fire Resistance
1562°F (850°C) IEC 60695-2-1
Maximum Operating Rate
3600 cyc/h 140°F (60°C)
Ambient Air Temperature For Operation
-40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
