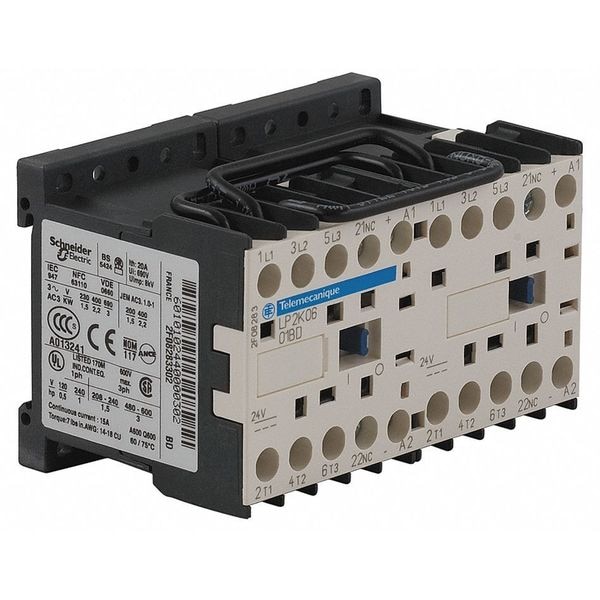

IEC Miniature Magnetic Contactor, 1NC, 24V DC, 3 P, Reversing, Screw Clamp

  • Mfr # LP2K0601BD
  • Zoro # G0682297

product price:
$
163.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
6 A
Full Load Amps-Resistive
15 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LP2K0601BD
Zoro #
G0682297
UPC #
785901913702
Country of Origin
Korea, Republic of
Item
IEC Miniature Magnetic Contactor
Auxiliary Contact Form
1NC
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
6 A
Full Load Amps-Resistive
15 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
Reversing
Yes
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
3 hp
HP @ 1 Phase - 230V
1-1/2
Series
TeSys K
Switching Voltage
17 V (Signalling Circuit)
Rated Short-Time Withstand Current
90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 20 A (at 50°C for 15 min Power Circuit)
Electrical Durability
1.3 Mcycles (6 A, AC-3, Less than 440 V); 1.3 Mcycles (6 A, AC-3e, Less than 440 V)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
8 kV
Control Circuit Voltage Limits
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
IP Rating
IP20
Mechanical Durability
5 Mcycles
Switching Current
5 mA (Signalling Circuit)
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Rated Insulation Volts
600V, 690V
Tightening Torque
0.8 to 1.3 Nm
Rated Making Capacity
110 A
Shock Resistance
10 G for 11 ms (on Y axis with Contactor Closed), 15 G for 11 ms (on X and Z axis with Contactor Closed), 6 G for 11 ms (on Y axis with Contactor Open), 10 G for 11 ms (on X and Z axis with Contactor Open)
Impedance
3 mOhm
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Watts Loss
3W
Application
Motor Control
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Operating Time
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
Net Weight
0.48 kg
Fuse Amps
25 A (Power Circuit), 10 A (Signalling Circuit)
Max. Operating Watts
1.5 kW (at 220 to 230V AC 50/60 Hz), 2.2 kW (at 380 to 415VAC 50/60 Hz), 3 kW (at 440V AC 50/60 Hz), 3 kW (at 480V AC 50/60 Hz), 3 kW (at 500 to 600V AC 50/60 Hz), 3 kW (at 660 to 690V AC 50/60 Hz)
Operating Speed
3600 cycles per hr
Overvoltage Category
CAT III
Features
Preassembled with Reversing Power Busbar
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
3 hp
Number of Normally Open Main Contacts
3
Contactor Style
IEC
Electrical Operating Durability
1,300,000
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-13 Degrees F
Mounting Style
DIN Rail, Plate
Full Load Current - Inductive
6 A
Mechanical Operating Durability
5,000,000
Horsepower @ Single Phase - 120V AC
1/2 hp
Maximum Operating Temperature
122 Degrees F
Embedded Surge Suppressor
No
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
1 1/2 hp
Horsepower @ Three Phase - 600V AC
3 hp
Horsepower @ Three Phase - 240V AC
1 1/2 hp
Full Load Current - Resistive
15 A
Horsepower @ Three Phase - 208V AC
1 1/2 hp
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Insulation Resistant
Ambient Air Temperature For Storage
-58 to 176°F (-50 to 80°C)
Hold-In Power Consumption in W
3 W 68°F (20°C)
Protective Treatment
TC IEC 60068; TC DIN 50016
Auxiliary Contacts Type
Instantaneous 1 NC
Heat Dissipation
3 W
Utilisation Category
AC-3; AC-3e; AC-4
Control Circuit Type
DC standard
Maximum Operating Rate
3600 cyc/h
Conventional Free Air Thermal Current
20 A (at 140°F (60°C)) for power circuit; 10 A (at 122°F (50°C)) for signalling circuit
Device Application
Control
Inrush Power in W
3 W 68°F (20°C)
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mechanical Robustness
Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27; Vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6; Vibrations contactor opened2 Gn, 5 to 300 Hz IEC 60068-2-6; Shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27
Rated Operational Current
6 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 6 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Ambient Air Temperature For Operation
-13 to 122°F (-25 to 50°C)
Interlocking Type
Mechanical
Rated Operational Voltage
Power circuit 690 V AC 50/60 Hz; Signalling circuit Less than or Equal to 690 V AC 50/60 Hz
Operating Altitude
6561.68 ft (2000 m) without derating
Non Overlap Distance
0.02 in (0.5 mm)
Pole Contact Composition
3 NO

Dimensions

Working Height
6561.68 ft
Overall Width
3.54 in
Overall Depth
2.24 in
Overall Height
2.28 in

Description

The SQUARE D IEC Miniature Magnetic Contactor is an IEC-standard, reversing, 3-pole contactor with a 24 V DC coil. It uses screw clamp terminals, mounts on DIN rail or plate, and includes 3 normally open main contacts plus 1 normally closed auxiliary contact. Rated for operation within the specified voltage range; suitable for motor control applications as per product specifications.

Key features

  • Coil voltage: 24 V DC
  • Action: Reversing
  • Poles: 3P; Main contacts: 3 NO
  • Auxiliary contacts: 1 NC (Instantaneous 1 NC)
  • Preassembled with Reversing Power Busbar
  • Terminals: Screw clamp
  • Mounting: DIN Rail, Plate
  • Enclosure: No Enclosure
  • IP rating: IP20
  • Certifications: CB Scheme; CCC; UL; CSA; EAC; CE; UKCA
  • Maximum voltage: 690 V AC; Frequency: 50/60 Hz
  • Ambient operating/storage temperatures: -25 to 50°C operating; -50 to 80°C storage
  • Net weight: 0.48 kg
  • Dimensions (W x H x D): 3.54 in x 2.28 in x 2.24 in
  • Impedance: 3 mΩ
  • Insulation resistance: >10 MΩ (Signalling circuit)
  • Impulse withstand: 8 kV
  • Mechanical durability: 5 Mcycles
  • Electrical durability: 1.3 Mcycles (Power 6 A AC-3 <440 V); 1.3 Mcycles (Signalling 6 A AC-3e <440 V)
  • Rated insulation voltage: 600/690 V
  • Rated operational current: 6 A (AC-3 up to 440 V, and AC-3e as specified)
  • Operating cycles: Up to 3600 cyc/h
  • Operating altitude: 2000 m (without derating)
