- Item

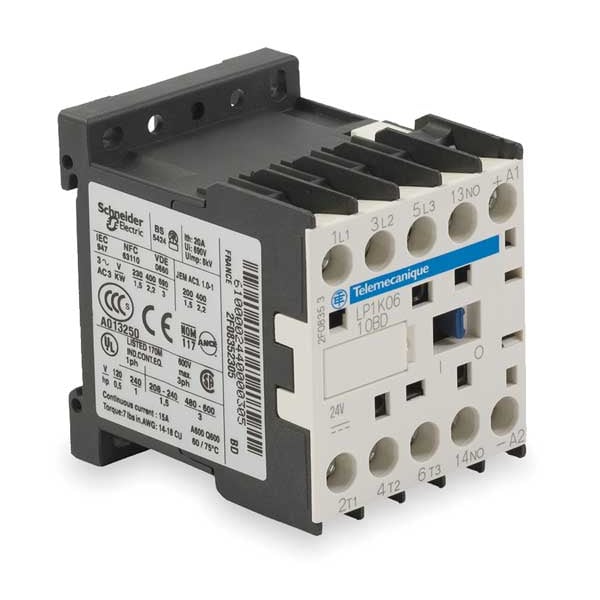

- IEC Miniature Magnetic Contactor
- Auxiliary Contact Form
- 1NO
- Coil Voltage
- 24V DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 9 A
- Full Load Amps-Resistive
- 20 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 1
- Standards
- CSA, UKCA, UL Listed
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- No
- Frame / Series / Class / Code
- TeSys
- HP @ 3 Phase - 575V
- 5 hp
- HP @ 1 Phase - 230V
- 1-1/2
- Series
- TeSys K
- Rated Insulation Volts
- 600/690V
- Fuse Amps
- 25 A (Power Circuit), 10 A (Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Mechanical Durability
- 10 Mcycles
- Net Weight
- 0.225 kg
- Electrical Durability
- 1.3 Mcycles 9 A AC-3 Less than or Equal to 440 V; 1.3 Mcycles 9 A AC-3e Less than or Equal to 440 V; 0.16 Mcycles 20 A AC-1 Less than or Equal to 690 V; 0.02 Mcycles 54 A AC-4 Less than or Equal to 440 V
- Control Circuit Voltage Limits
- Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
- Environmental Attributes
- Mercury Free, Toxic Heavy Metal Free
- Rated Making Capacity
- 110 A
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Tightening Torque
- 0.8 to 1.3 Nm
- Impedance
- 3 mOhm
- Rated Breaking Capacity
- 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
- Application
- Motor Control, Resistive Load
- Operating Speed
- 3600 cycles per hr
- Fire Rating
- UL 94 V1, NF F 16-101, NF F 16-102
- Overvoltage Category
- CAT III
- Operating Time
- 30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
- Impulse Withstand Voltage
- 8 kV
- NEMA Enclosure Rating
- No Enclosure
- Frequency
- 50/60 Hz
- Number of Normally Open Main Contacts
- 3
- Full Load Current - Inductive
- 9 A
- Maximum Voltage Rating
- 690V AC
- Maximum Operating Temperature
- 122 Degrees F
- Embedded Surge Suppressor
- No
- Horsepower @ Three Phase - 600V AC
- 5 hp
- Horsepower @ Three Phase - 240V AC
- 3 hp
- Includes Auxiliary Contacts
- Yes
- Horsepower @ Single Phase - 240V AC
- 1 1/2 hp
- Full Load Current - Resistive
- 20 A
- Horsepower @ Three Phase - 480V AC
- 5 hp
- Mechanical Operating Durability
- 10,000,000
- Minimum Operating Temperature
- -13 Degrees F
- Mounting Style
- DIN Rail, Plate
- Resistance Properties
- Insulation Resistant
- Contactor Style
- IEC
- Horsepower @ Three Phase - 208V AC
- 2 hp
- Horsepower @ Single Phase - 120V AC
- 1/2 hp
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz; Signalling circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz
- Maximum Operating Rate
- 3600 cyc/h
- Control Circuit Type
- DC standard
- Ambient Air Temperature For Operation
- -13 to 122°F (-25 to 50°C)
- Contactor Application
- Motor control; Resistive load
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Hold-In Power Consumption in W
- 3 W 68°F (20°C)
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Inrush Power in W
- 3 W 68°F (20°C)
- Utilisation Category
- AC-3; AC-3e; AC-1; AC-4
- Ambient Air Temperature For Storage
- -58 to 176°F (-50 to 80°C)
- Rated Operational Current
- 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 20 A (at Less than 140°F (60°C)) at Less than or Equal to 690 V AC AC-1 for power circuit
- Auxiliary Contacts Type
- Instantaneous 1 NO
- Conventional Free Air Thermal Current
- 20 A (at 140°F (60°C)) for power circuit; 10 A (at 122°F (50°C)) for signalling circuit
- Heat Dissipation
- 1.3 W
- Pole Contact Composition
- 3 NO
- IP Rating
- IP2X
