Shop SQUARE D

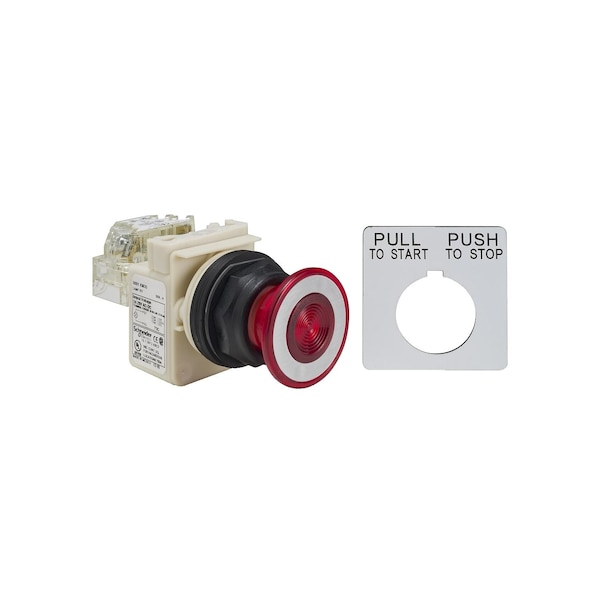

Illuminated push-button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 24-28V, 1 C/O

  • Mfr # 9001SKR9P35RH13

  • Zoro # G3302920

product price:  $281.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001SKR9P35RH13
Zoro #
G3302920
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm

Details

Item
PUSHBUTTON 28V 30MM SK +OPTIONS
Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
IEC 60947-1, CSA C22.2 No 14, JIS C 852, UL 508, IEC 60947-5-4, JIS C 4520, EN/IEC 60947-5-1
Bezel Material
plastic
Bulb Base
BA 9s
Type Of Operator
push-pull
Operating Position
any position
Contacts Material
silver alloy contacts
Rated Breaking Capacity
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Ambient Air Temperature For Operation
-25-70°C
[Us] Rated Supply Voltage
24 to 28 V AC/DC, 24 to 28 V
Contacts Type And Composition
1 C/O
Light Block Supply
full voltage, direct
Device Short Name
9001SK
Shock Resistance
50 gn IEC 60068-2-27
Connections - Terminals
screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Operator Additional Information
screw-on plastic
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Mechanical Durability
5000000 cycles
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Product Or Component Type
illuminated push-button
[Ith] Conventional Free Air Thermal Current
10 A
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
complete product
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Protective Treatment
TC
Operator Position Information
2 positions
Electrical Shock Protection Class
class II IEC 60536
Light Source
incandescent, incandescent bulb
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Shape Of Signaling Unit Head
round
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Ambient Air Temperature For Storage
-40-70°C
Shape Of Screw Head
cross slotted
Cap/Operator Or Lens Colour
red
Ip Degree Of Protection
IP66 IEC 60529 || IP66 NF C 20-010
Operator Profile
red mushroom Ø 41 mm, mushroom Ø 41 mm
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Range of Product
Harmony 9001SK

Description

PUSHBUTTON 28V 30MM SK +OPTIONS
