  8. Illuminated push-button head, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, LED green, 24-28V

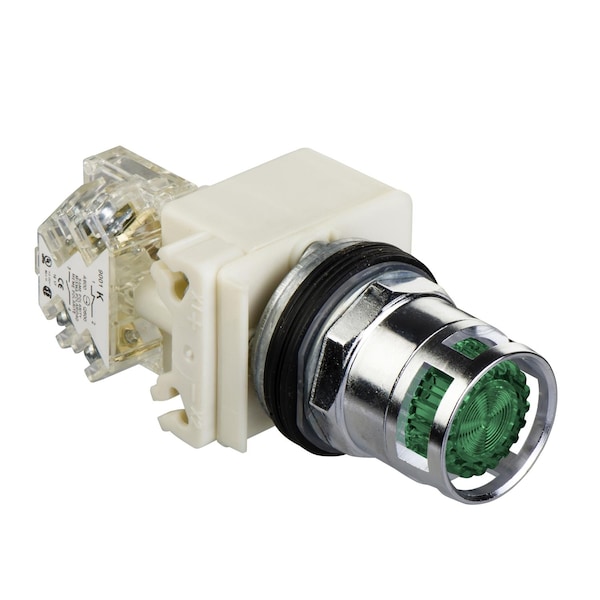

Square D Illuminated push-button head, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, LED green, 24-28V 9001K3L35LGG - main
Shop SQUARE D

Illuminated push-button head, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, LED green, 24-28V

  • Mfr # 9001K3L35LGG

  • Zoro # G3306098

product price:  $166.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001K3L35LGG
Zoro #
G3306098
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mounting Diameter
30 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Standards
JIS C 852 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || JIS C 4520 || EN/IEC 60947-1 || CSA C22.2 No 14
Bezel Material
metal
Electrical Shock Protection Class
class II IEC 61140
Shock Resistance
50 gn IEC 60068-2-27
Shape Of Signaling Unit Head
round
Contacts Type And Composition
without contact block
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Light Source Colour
green
Type Of Operator
spring return
Device Short Name
9001K
Product Certifications
NEMA || UL 508
Light Block Supply
direct 24 to 28 V AC/DC
[Us] Rated Supply Voltage
24 to 28 V
Product Or Component Type
head for illuminated push-button
Operator Profile
flush, green flush, unmarked
Ip Degree Of Protection
IP66 IEC 60529
Bulb Base
BA 9s
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Protective Treatment
TC
Operator Additional Information
metal guard
Operating Position
any position
Cap/Operator Or Lens Colour
green
Light Source
Green LED
Ambient Air Temperature For Operation
-25-70°C
Mechanical Durability
5000000 cycles
Range of Product
Harmony 9001K

Description

PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS
