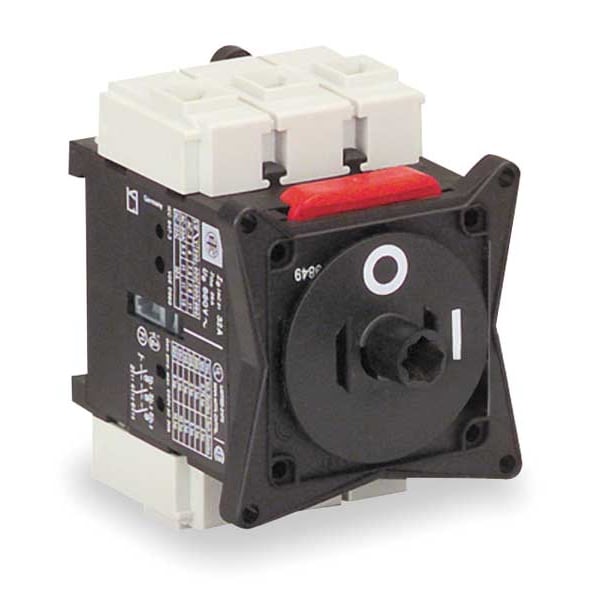

Square D Load Break Switch, Nonfusible, 3PST, Three Phase, Enclosed, Non-Metallic V1 - main

Load Break Switch, Nonfusible, 3PST, Three Phase, Enclosed, Non-Metallic

  • Mfr # V1

  • Zoro # G3103755

product price: $107.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
20 A
Phase
Three
Enclosure Type
Enclosed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V1
Zoro #
G3103755
UPC #
785901305576
Country of Origin
Czechia

Dimensions

Height
3 in
Width
2 1/4 in
Depth
2 1/4 in
Standard Conduit Size
0.75 in

Details

Item
Load Break Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
20 A
Phase
Three
Enclosure Type
Enclosed
HP
10 HP
Voltage
600 V
Housing Material
Non-Metallic
Standards
CCC, CSA Certified, EAC, IEC, Marine, UL Listed
Number of Wires
3
Number of Poles
3
Material
Non-Metallic
Duty
General
Fusible / Nonfusible
Nonfusible
Neutral Assembly Included
No
Amps
20 A
IP Rating
IP20
Features
Opening for 6 mm (0.24 in) Shaft Width
Product Type
Load Break Switch
Mounting Style
DIN Rail
Horsepower @ 600V AC
10 hp
Horsepower @ 240V AC
5 hp
Resistance Properties
Fire-Resistant
Horsepower @ 480V AC
10 hp
Rated Conditional Short-Circuit Current
10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG
Mechanical Robustness
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Product Name
TeSys VARIO
Performance Level
high performance
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
Making Capacity
320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A
Ip Degree Of Protection
IP20 conforming to IEC 60529
Contacts Type And Composition
3 NO
Mounting Support
symmetrical rail || plate
Network Type
AC || DC
Suitability For Isolation
yes
Ambient Air Temperature For Operation
-20-50°C
Network Frequency
50/60 Hz
Breaking Capacity
250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)
Device Short Name
V
Protective Treatment
TC
Intermittent Duty Class
30
Poles Description
3P
Rated Operational Power In W
11 kW 500 V AC-23A) || 15 kW 690 V AC-23A) || 1.5 kW 230...240 V AC-3) || 7.5 kW 500 V AC-3) || 7.5 kW 690 V AC-3) || 5.5 kW 230...240 V AC-23A) || 11 kW 400...415 V AC-23A) || 7.5 kW 400...415 V AC-3)
Product Certifications
UL || CSA || GL || UKCA || CCC
Product Or Component Type
switch body
Mechanical Durability
100000 cycles
Fire Resistance
960°C IEC 60695-2-1
Electrical Durability
100000 cycles AC-21 || 30000 cycles DC-1...5
Range
TeSys
Tightening Torque
power circuit 2.1-2.1 N.m screw clamp terminals

Description

Load Break Switch, Contact Form 3PST, Current Rating 20 A, Depth 2 1/4 in, Duty Standard, Enclosure Type Enclosed, Features Opening for 6 mm (0.24 in) Shaft Width, For Fuse Class Not Applicable, Height 3 in, Horsepower @ 240V AC 5 hp, Horsepower @ 480V AC 10 hp, Horsepower @ 600V AC 10 hp, Housing Material Non-Metallic, IP Rating IP20, Mounting Style DIN Rail, Neutral Assembly Included No, Number of Poles 3, Number of Wires 3, Phase Three, Protection Method Non-Fusible
