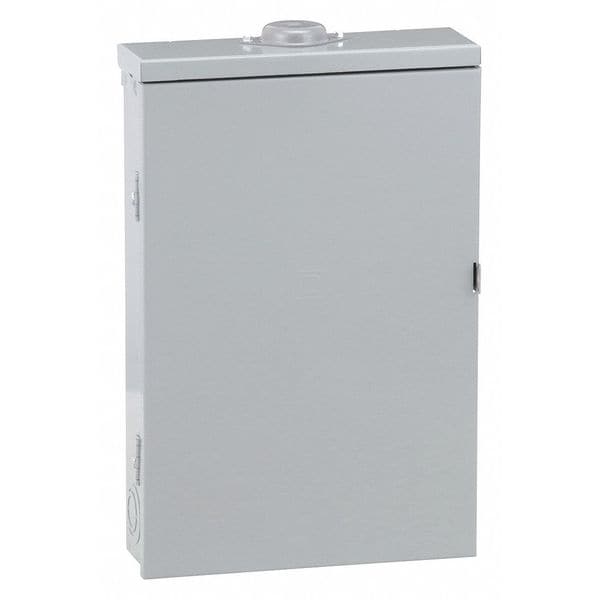

Square D Load Center, 20 Spaces, 125A Amps, 120/240V AC QO320L125GRB - main

CAD Viewer & Download Files

Load Center, 20 Spaces, 125A Amps, 120/240V AC

  • Mfr # QO320L125GRB

  • Zoro # G1492364

CAD Available
product price: $419.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
20
Amps
125A
Voltage
120/240V AC
Circuit Breaker Type
QO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO320L125GRB
Zoro #
G1492364
UPC #
785901295426
Country of Origin
United States

Dimensions

Height
22-1/2 in
Width
14.77 in
Depth
4-1/2 in
Max. Wire Size
AWG 2/0 aluminium/copper
Min. Wire Size
AWG 6

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
20
Amps
125A
Voltage
120/240V AC
Circuit Breaker Type
QO
Phase
3
Max. No. of Tandem Breakers
0
Short Circuit Current Rating
65kA
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Copper
Recommended Ground Bar Kit
Included
Standards
RoHS Compliant, UL Listed
Special Features
Mercury Free
Feed Location
Top/Bottom
Max. Operating Temp.
104 Degrees F
Cover Attachment Style
Side Hinge
Color
Gray
Min. Operating Temp.
23 Degrees F
Enclosure Surface Finish
Enamel
Cover Closure Method
Latch
For Use With
Square D QO Circuit Breakers
Location
Outdoor
Electrical Connection
lugs
Number Of Circuits
20
Tightening Torque
main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
Wiring Configuration
4-wire || 3-wire
Ground Bar Kit
grounding bar included (not installed)
Primary/Ambient Air Temp.
-5°C || 40°C
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
Product Certifications
UL Listed
Box Number
4R
Finish
Baked Enamel
CAD Available
Yes

Description

Load Center, Number of Spaces 20, Amps 125 A, Voltage 208Y/120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 3, Series QO, Height 22.5 in, Width 14.77 in, Depth 4 1/2 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Copper, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 3R, Cover Attachment Style Side Hinge, Cover Closure Method Latch
