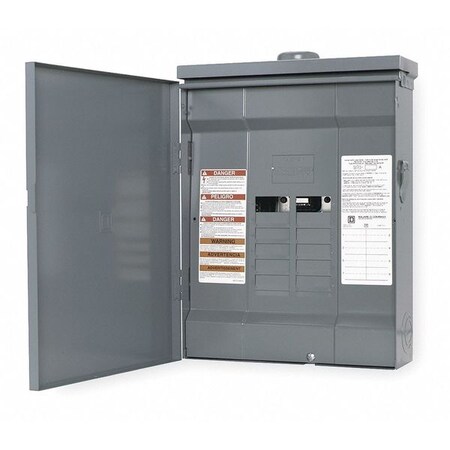

Load Center, 30 Spaces, 200, 120/240VAC, Main Lug, Convertible, 1 Phase (Discontinued)
- Mfr # HOM30L200RB
- Zoro # G2287004
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HOM30L200RB
Zoro #
G2287004
UPC #
785901061281
Country of Origin
United States
Dimensions
Height
33-3/4"
Width
14-3/4"
Depth
4-1/2"
Details
Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug, Convertible
Number of Spaces
30
Amps
200
Voltage
120/240VAC
Phase
1
Short Circuit Current Rating
10kA
Recommended Surface Cover
Included
Enclosure Material
Welded Galvannealed Steel
Enclosure NEMA Rating
3R
Bus Material
Tin Plated Aluminum
Standards
UL Listed File E-6294, Federal Specification W-P-115c as Type 1 Class 2
Max. No. of Tandem Breakers
0
Recommended Ground Bar Kit
Included
Circuit Breaker Type
HOM
Description
Load Center, Number of Spaces 30, Amps 200, Voltage 120/240VAC, Circuit Breaker Type HOM, Main Circuit Breaker or Main Lug Main Lug, Convertible, Max. No. of Tandem Breakers 0, Phase 1, Height 33-3/4 In., Width 14-3/4 In., Depth 4-1/2 In., Bus Material Tin Plated Aluminum, Short Circuit Current Rating 10kA, Enclosure NEMA Rating 3R, Recommended Ground Bar Kit Included, Recommended Surface Cover Included, Enclosure Material Welded Galvannealed Steel
