  9. Load Center, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

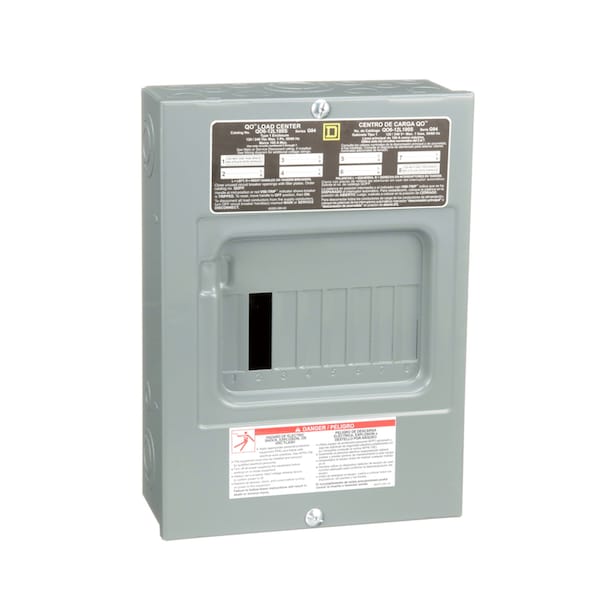

Square D Load Center, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase QO612L100SCP - main

CAD Viewer & Download Files

Load Center, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # QO612L100SCP

  • Zoro # G2920921

CAD Available
product price: $51.99
/ea

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO612L100SCP
Zoro #
G2920921
UPC #
47569805073
Country of Origin
United States

Dimensions

Height
319 mm
Width
226 mm
Depth
95 mm
Max. Wire Size
AWG 1 aluminium/copper
Min. Wire Size
AWG 8

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10 kA
Included Enclosure Cover
Surface Cover
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Number of Poles
6
Surface Finish
baked enamel Gray
Ambient Air Temperature For Operation
-5 2°C || 40 2°C
Number Of Tandem Circuit Breakers
6
Device Composition
grounding bar (ordered separately)
Electrical Connection
lugs
Number Of Circuits
12
Product Certifications
UL Listed
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Wiring Configuration
3-wire
Line Rated Current
100 A
CAD Available
Yes

Description

The Square D QO 100 amp 6-space 12-circuit fixed main lugs indoor load center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged thermoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.


  • • Includes a surface mount indoor cover
  • • 3/4 inch circuit breaker width.
  • • Accommodates plug-on secondary surge arrestor (sold separately)
  • • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • • Single phase
  • • Rated 120/240 VAC and 10,000 AIR short circuit current rating
