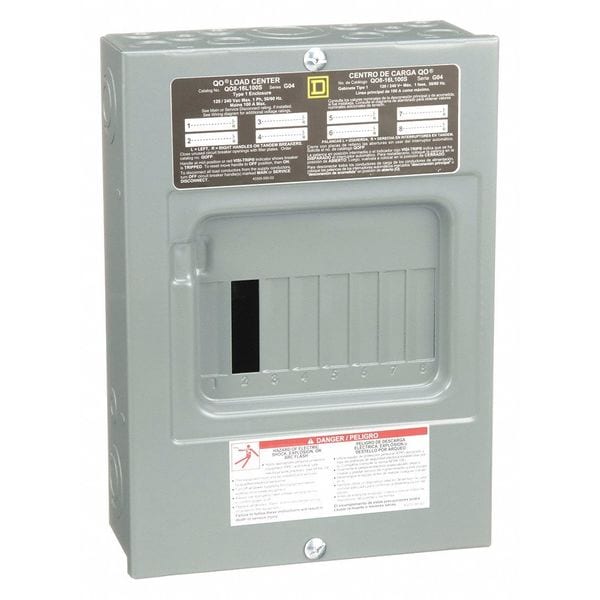

Square D Load Center, 8 Spaces, 100A Amps, 120/240V AC QO816L100S - main

CAD Drawings

Download CAD Files

Load Center, 8 Spaces, 100A Amps, 120/240V AC

  • Mfr # QO816L100S

  • Zoro # G2936744

CAD Available
product price: $90.49
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Circuit Breaker Type
QO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO816L100S
Zoro #
G2936744
UPC #
785901785682
Country of Origin
Mexico

Dimensions

Height
12.56 in
Width
8.91 in
Depth
3-3/4 in
Min. Wire Size
AWG 8
Max. Wire Size
AWG 1 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Circuit Breaker Type
QO
Phase
1
Short Circuit Current Rating
10kA
Max. No. of Tandem Breakers
8
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Standards
RoHS Compliant, UL Listed
Special Features
Green Premium Product, Mercury Free, Toxic Heavy Metal Free
Recommended Ground Bar Kit
1D374
Min. Operating Temp.
23 Degrees F
Enclosure Surface Finish
Enamel
Color
Gray
Cover Closure Method
Lift-Off
Feed Location
Top/Bottom
For Use With
Square D QO Circuit Breakers
Max. Operating Temp.
104 Degrees F
Cover Attachment Style
Screw On
Location
Indoor
Wiring Configuration
3-wire
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Primary/Ambient Air Temp.
-5°C || 40°C
Electrical Connection
lugs
Ground Bar Kit
grounding bar (ordered separately)
Number Of Circuits
16
Finish
Baked Enamel
CAD Available
Yes

Description

Load Center, Number of Spaces 8, Amps 100 A, Voltage 120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 8, Phase 1, Series QO, Height 12.56 in, Width 8.91 in, Depth 3 3/4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 10kA, Enclosure NEMA Rating 1, Cover Attachment Style Screw On, Cover Closure Method Lift-Off
