  9. Load Center, HOM, 12 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

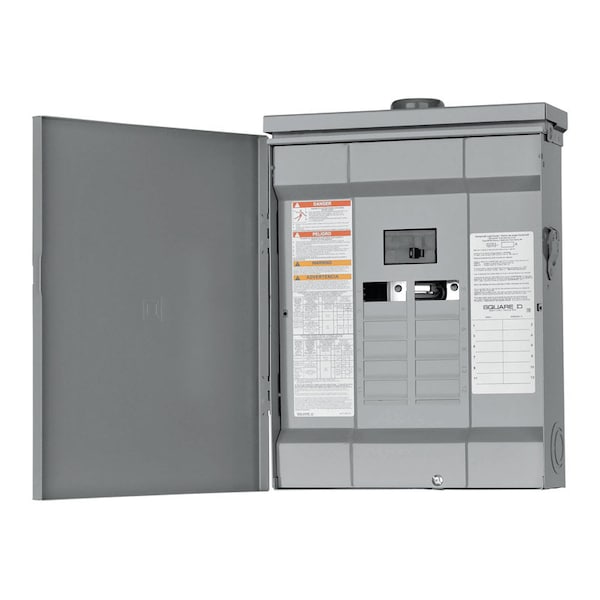

Square D Load Center, HOM, 12 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase HOM1224M100PRB - main

CAD Viewer & Download Files

Load Center, HOM, 12 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # HOM1224M100PRB

  • Zoro # G1933860

CAD Available
product price: $163.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
22kA
Height
481 mm
Width
375 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HOM1224M100PRB
Zoro #
G1933860
UPC #
785901861195
Country of Origin
United States

Dimensions

Height
481 mm
Width
375 mm
Depth
115 mm
Max. Wire Size
1 AWG (Cu), 2/0 AWG (Al)
Min. Wire Size
6 AWG (Cu/Al)

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
12
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
22kA
Series
HOM
Included Enclosure Cover
Surface Cover
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Aluminum
Circuit Breaker Type
PoN Convertible Mains (breaker)
Features
Mercury Free
Application
Outdoor
Standards
UL Listed
Includes
Surface Cover; Circuit-Breaker 1 ) 2P 100 A 120/240 V Ac Main Supply Ready Assembled
CAD Available
Yes

Description

The Square D Homeline 100 Amp 12-Space 24-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.


  • • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • • Each pole space accepts full-size, tandem or quad breakers
  • • Ground and neutral bars accept up to (3) 10-14 equipment grounds
  • • Accommodates plug-on secondary surge arrestor (sold separately)
  • • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • • Single phase
