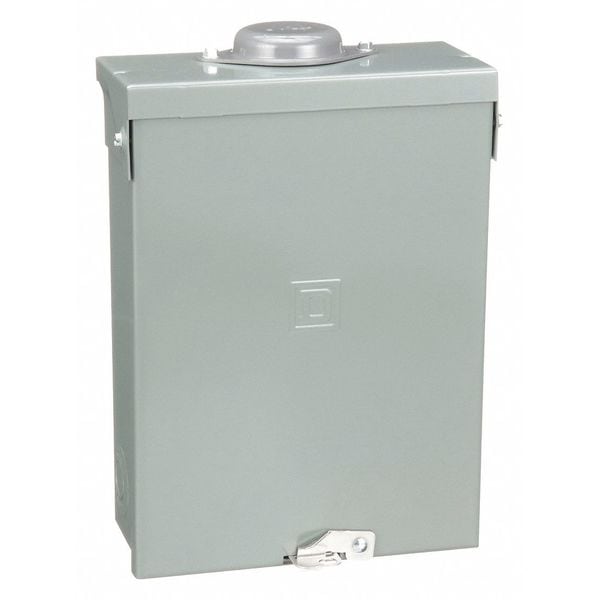

Square D Load Center, HOM, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase HOM612L100RB - main

CAD Drawings

Download CAD Files

Load Center, HOM, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # HOM612L100RB

  • Zoro # G1766597

CAD Available
product price:  $62.39
/ea

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HOM612L100RB
Zoro #
G1766597
UPC #
785901061205
Country of Origin
Mexico

Dimensions

Height
12.64 in
Width
8.91 in
Depth
4-1/4 in
Min. Wire Size
AWG 8
Max. Wire Size
AWG 1 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
HOM
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Aluminum
Circuit Breaker Type
HOM
Standards
RoHS Compliant, UL Listed
Max. No. of Tandem Breakers
6
Special Features
Green Premium Product, Mercury Free
Recommended Ground Bar Kit
1D374
Location
Outdoor
Enclosure Surface Finish
Enamel
Max. Operating Temp.
104 Degrees F
Feed Location
Top/Bottom
Cover Attachment Style
Top Hinge
Min. Operating Temp.
23 Degrees F
Color
Gray
For Use With
Homeline Plug in Circuit Breaker, Homeline load center accessories
Cover Closure Method
Latch
Ground Bar Kit
grounding bar (ordered separately)
Number Of Circuits
12
Wiring Configuration
3-wire
Primary/Ambient Air Temp.
-5°C || 40°C
Electrical Connection
Lugs
Product Certifications
UL listed file E-6294
Bus Rated Current
100.0 A
Box Number
2R
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
Finish
Baked Enamel
CAD Available
Yes

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 100A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 6 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 1 AWG copper or aluminum wire. This Homeline load center has a height of 12.63 inches, a width of 8.89 inches, and depth of 4.25 inches. Homeline load centers are UL Listed.
