  5. Load Center, HOM, 8 Spaces, 100A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase

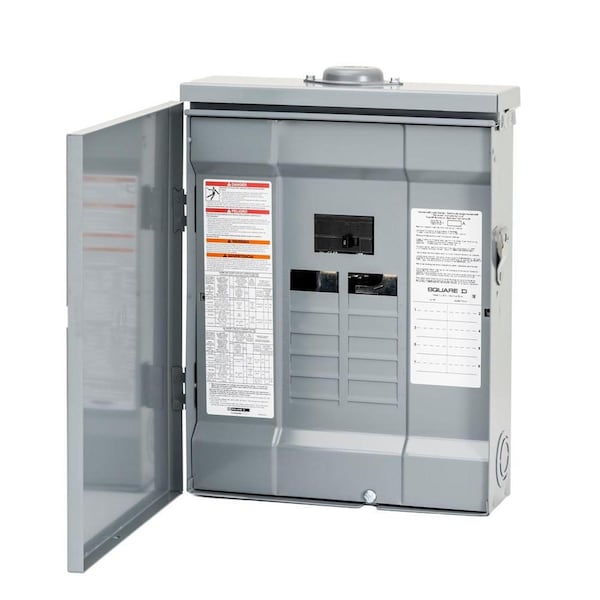

Square D Load Center, HOM, 8 Spaces, 100A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase HOM816M100PRB - main

Load Center, HOM, 8 Spaces, 100A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase

  • Mfr # HOM816M100PRB

  • Zoro # G3308283

CAD Available
product price:  $200.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HOM816M100PRB
Zoro #
G3308283
UPC #
-
Country of Origin
United States

Dimensions

Height
18.94 in
Width
14.76 in
Depth
4.53 in
Min. Wire Size
AWG 6
Max. Wire Size
AWG 2/0 aluminium

Details

CAD Available
Yes
Item
Load Center
Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
8
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
22kA
Series
HOM
Included Enclosure Cover
Surface Cover
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Aluminum
Max. No. of Tandem Breakers
8
Standards
UL listed file E-6294
Circuit Breaker Type
Homeline
For Use With
Homeline Plug in, Plug-on Neutral Circuit Breaker, Homeline load center accessories
Ground Bar Kit
grounding bar (ordered separately); circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled
Number Of Circuits
16
Wiring Configuration
3-wire
Primary/Ambient Air Temp.
-5°C || 40°C

Description

Homeline,LC,100 A,120/240 V,1 PH,MB
