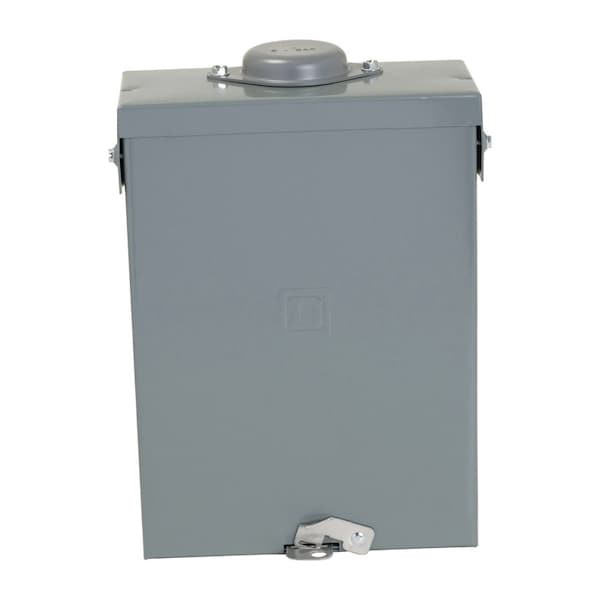

Load Center, Homeline circuit breakers Use With, 120/240V AC, 100A

  • Mfr # HOM612L100RBCP

  • Zoro # G2921192

product price:
$
65.15
/ea

Key Features

For Use With
Homeline circuit breakers
Voltage
120/240V AC
Amps
100 A
Number of Poles
6
Max. Wire Size
AWG 1 aluminium/copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HOM612L100RBCP
Zoro #
G2921192
UPC #
47569071256
Country of Origin
United States

Dimensions

Max. Wire Size
AWG 1 aluminium/copper
Min. Wire Size
AWG 8
Width
226 mm
Height
321 mm
Depth
108 mm

Details

Item
Load Center
For Use With
Homeline circuit breakers
Voltage
120/240V AC
Amps
100 A
Number of Poles
6
Material
tin plated aluminium busbar
Number Of Tandem Circuit Breakers
6
Awg Gauge
AWG 8...AWG 1 copper or aluminium
Phase
1 phase
Number Of Circuits
12
Ambient Air Temperature For Operation
-5 2°C || 40 2°C
Product Certifications
UL listed file E-6294
Cover Type
surface cover
Product Or Component Type
Load Center
Wiring Configuration
3-wire
Short-Circuit Current
10 kA
Enclosure Material
welded galvannealed steel
Load Center Type
Fixed Mains (lugs)
Number Of Spaces
6
Surface Finish
baked enamel Gray
Line Rated Current
100 A
Nema Degree Of Protection
NEMA 3R outdoor

Description

The Square D Homeline 100 Amp 6-Space 12-Circuit Outdoor fixed Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.


  • • Accommodates plug-on secondary surge arrestor (sold separately)
  • • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • • Single phase
  • • Rated 120/240 VAC and 10000 AIR short circuit current rating
  • • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • • Thermoplastic interior assembly is among the most rugged in the industry
