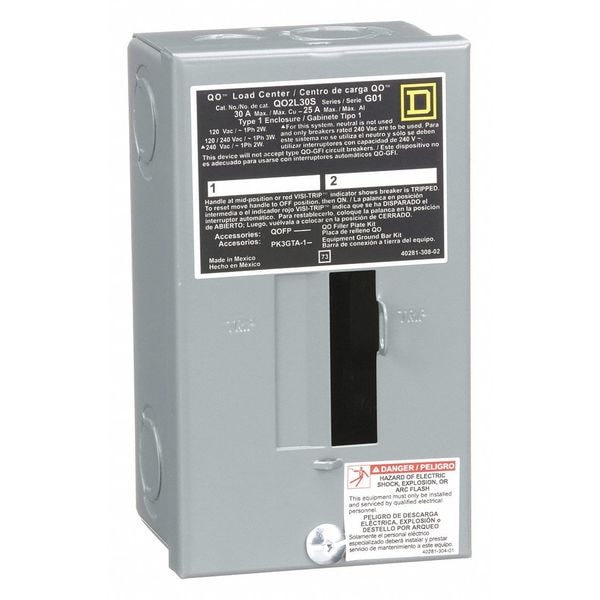

Square D Load Center, QO, 2 Spaces, 30A, 120/240V AC, Main Lug, 1 Phase QO2L30S - main

CAD Viewer & Download Files

Load Center, QO, 2 Spaces, 30A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # QO2L30S

  • Zoro # G3229186

CAD Available
product price: $23.85
/ea

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
30A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO2L30S
Zoro #
G3229186
UPC #
785901785071
Country of Origin
Mexico

Dimensions

Height
6.73 in
Width
3.81 in
Depth
3 in
Min. Wire Size
AWG 14
Max. Wire Size
AWG 10 copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
2
Amps
30A
Voltage
120/240V AC
Phase
1
Circuit Breaker Type
QO
Short Circuit Current Rating
10kA
Max. No. of Tandem Breakers
0
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Special Features
Mercury Free
Recommended Ground Bar Kit
5B717
Standards
RoHS Compliant, UL Listed
Color
Gray
Enclosure Surface Finish
Enamel
For Use With
Square D QO Circuit Breakers
Cover Closure Method
Lift-Off
Cover Attachment Style
Clip, Screw On
Min. Operating Temp.
23 Degrees F
Location
Indoor
Max. Operating Temp.
104 Degrees F
Feed Location
Top/Bottom
Electrical Connection
lugs
Number Of Circuits
2
Tightening Torque
main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
Primary/Ambient Air Temp.
-5°C || 40°C
Wiring Configuration
3-wire
Ground Bar Kit
grounding bar (ordered separately)
Finish
Baked Enamel
CAD Available
Yes

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 30A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated.
