  9. Load Center, QO, 6 Spaces, 100A, 120/240V AC, Fixed Main Lug, 1 Phase

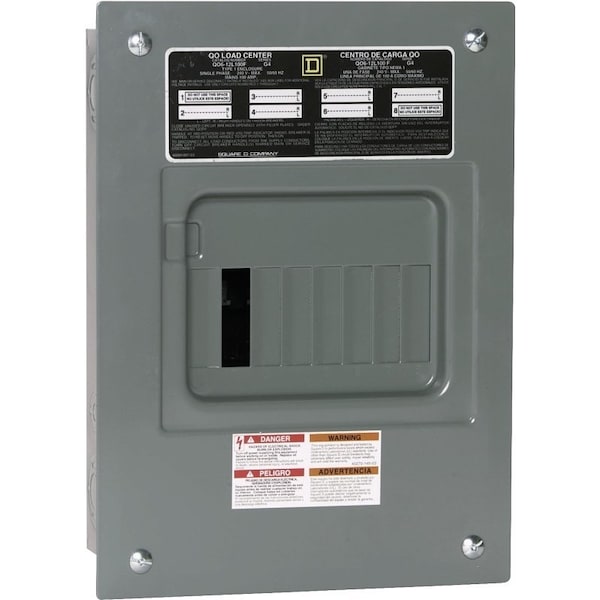

Square D Load Center, QO, 6 Spaces, 100A, 120/240V AC, Fixed Main Lug, 1 Phase QO612L100FCP - main

Load Center, QO, 6 Spaces, 100A, 120/240V AC, Fixed Main Lug, 1 Phase

  • Mfr # QO612L100FCP

  • Zoro # G604259054

product price: $50.79
/ea

Key Features

Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO612L100FCP
Zoro #
G604259054
UPC #
47569805080
Country of Origin
United States

Dimensions

Height
319 mm
Width
226 mm
Depth
3.74 in
Max. Wire Size
AWG 1 aluminium/copper
Min. Wire Size
AWG 8

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Fixed Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Max. No. of Tandem Breakers
6
Series
QO
Included Enclosure Cover
Flush Cover
Recommended Flush Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Standards
UL Listed
Finish
Baked Enamel
Ground Bar Kit
grounding bar (ordered separately)
Electrical Connection
lugs
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Number Of Circuits
12
Wiring Configuration
3-wire
Primary/Ambient Air Temp.
-5°C || 40°C

Description

Main lug indoor load center, 100 A, 6 space/12 circuit, intended for use in fixed applications. NEMA type 1 enclosure and a copper bus bar for conductivity. Single-phase, rated for up to 240 V and has a 10,000 maximum SCCR. UL listed.
