  9. Load Center, QO, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

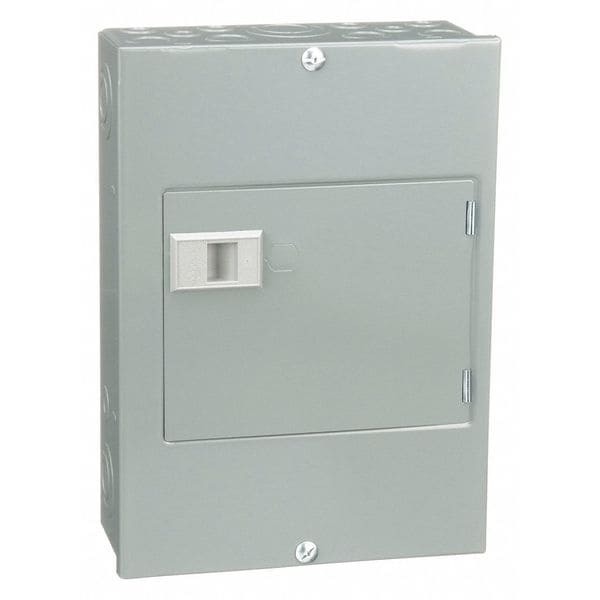

Square D Load Center, QO, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase QO612L100DS - main

CAD Viewer & Download Files

Load Center, QO, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # QO612L100DS

  • Zoro # G0953811

CAD Available
product price: $46.45
/ea

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Circuit Breaker Type
QO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO612L100DS
Zoro #
G0953811
UPC #
785901785620
Country of Origin
Mexico

Dimensions

Height
12.56 in
Width
8.91 in
Depth
3-3/4 in
Max. Wire Size
AWG 1 aluminium/copper
Min. Wire Size
AWG 8

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Circuit Breaker Type
QO
Phase
1
Short Circuit Current Rating
10kA
Max. No. of Tandem Breakers
6
Series
QO
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Recommended Ground Bar Kit
1D374
Special Features
Green Premium Product, Mercury Free, Toxic Heavy Metal Free
Standards
RoHS Compliant, UL Listed
Cover Closure Method
Lift-Off
For Use With
Square D QO Circuit Breakers
Feed Location
Top/Bottom
Cover Attachment Style
Screw On
Location
Indoor
Enclosure Surface Finish
Enamel
Color
Gray
Max. Operating Temp.
104 Degrees F
Min. Operating Temp.
23 Degrees F
Wiring Configuration
3-wire
Primary/Ambient Air Temp.
-5°C || 40°C
Number Of Circuits
12
Ground Bar Kit
grounding bar (ordered separately)
Electrical Connection
lugs
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Finish
Baked Enamel
CAD Available
Yes

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. UL, CSA and CE approvals.
