  9. Load Center, QO, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

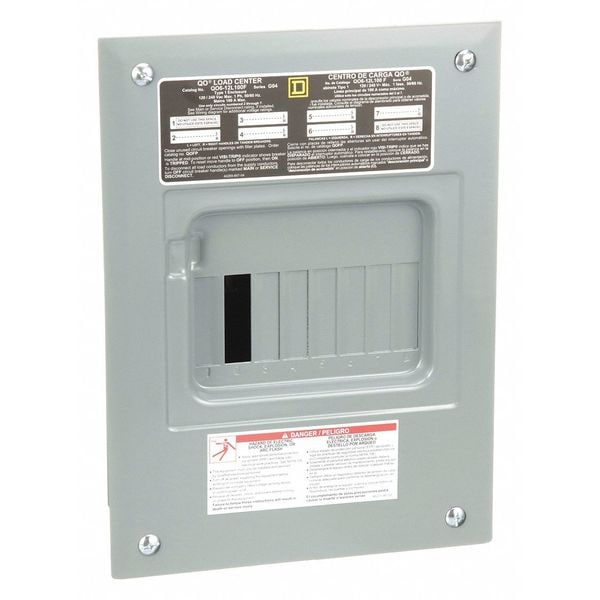

Square D Load Center, QO, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase QO612L100F - main

Load Center, QO, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase

  • Mfr # QO612L100F

  • Zoro # G0857005

product price: $47.69
/ea

Key Features

Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO612L100F
Zoro #
G0857005
UPC #
785901785583
Country of Origin
Mexico

Dimensions

Height
319 mm
Width
226 mm
Min. Wire Size
AWG 8
Max. Wire Size
AWG 1 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
6
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
QO
Included Enclosure Cover
Flush Cover
Recommended Flush Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Circuit Breaker Type
QO
Standards
UL Listed
Max. No. of Tandem Breakers
6
Wiring Configuration
3-wire
Electrical Connection
lugs
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Ground Bar Kit
grounding bar (ordered separately)
Primary/Ambient Air Temp.
-5°C || 40°C
Number Of Circuits
12
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
Box Number
4
Rated Current
100 A
Finish
Baked Enamel

Description

Load Center Qo Mlo 240V 100A 1Ph 6Sp N1
