  9. Load Centre Mounting Lug, QO circuit breakers Use With, 120/240V AC, 100A

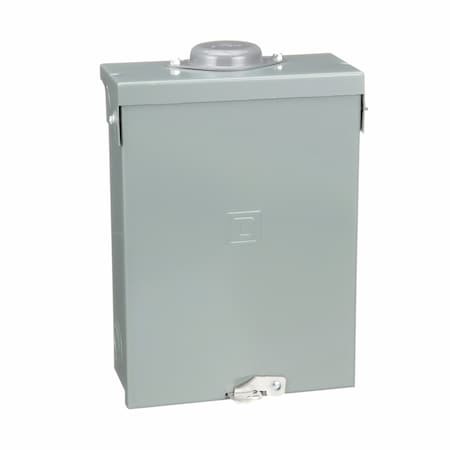

Square D Load Centre Mounting Lug, QO circuit breakers Use With, 120/240V AC, 100A QO612L100RBCP - main

Load Centre Mounting Lug, QO circuit breakers Use With, 120/240V AC, 100A

  • Mfr # QO612L100RBCP

  • Zoro # G2917738

product price: $89.34
/ea
Free Shipping & Returns

Key Features

For Use With
QO circuit breakers
Voltage
120/240V AC
Amps
100A
Number of Poles
6
Max. Wire Size
AWG 1 aluminium/copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO612L100RBCP
Zoro #
G2917738
UPC #
47569805097
Country of Origin
United States

Dimensions

Max. Wire Size
AWG 1 aluminium/copper
Min. Wire Size
AWG 8
Height
321 mm
Width
226 mm

Details

Item
Load Centre Mounting Lug
For Use With
QO circuit breakers
Voltage
120/240V AC
Amps
100A
Number of Poles
6
Material
tin plated aluminium busbar
Load Center Type
Fixed Mains (lugs)
[Ue] Rated Operational Voltage
120/240 V AC
Tightening Torque
main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
Product Certifications
UL Listed
Nema Degree Of Protection
NEMA 3R outdoor
Line Rated Current
100 A
Number Of Tandem Circuit Breakers
6
Ambient Air Temperature For Operation
-5 2°C || 40 2°C
Wiring Configuration
3-wire
Number Of Spaces
6
Enclosure Type
weatherproof enclosure
Cover Type
surface cover
Enclosure Material
welded galvannealed steel
Awg Gauge
AWG 8...AWG 1 aluminium/copper
Device Composition
grounding bar (ordered separately)
Short-Circuit Current
10 kA
Electrical Connection
lugs
Number Of Circuits
12
Phase
1 phase
Product Or Component Type
Load Center
Surface Finish
baked enamel Gray

Description

The Square D QO 100 amp 6-space 12-circuit fixed main lugs outdoor load center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged thermoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.


  • • Single and three phase
  • • 3/4 inch circuit breaker width
  • • 30 to 400 amps 2 to 42 circuits
  • • Indoor and outdoor versions
  • • Separate flush or surface mount covers
  • • Full complement of accessories
