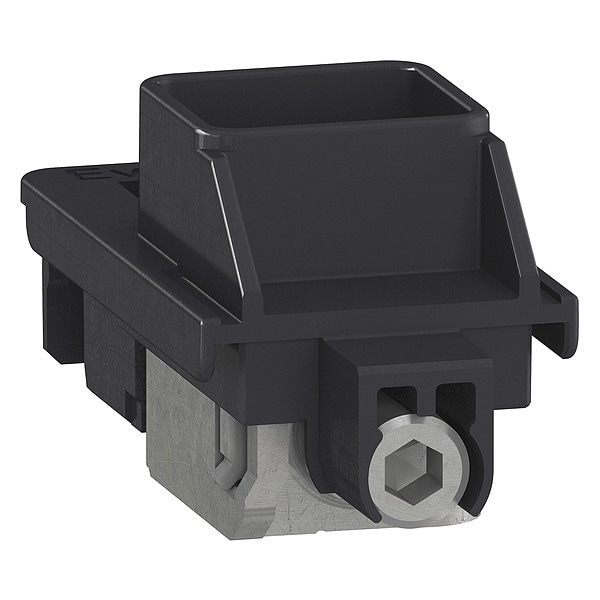

Lug Kit, Powerpact(R) B Circuit Breakers, 125A, 1 Poles
- Mfr # LV426972
- Zoro # G6560327
product price:Â
$
40.59
/ea
Key Features
For Use With
Powerpact(R) B Circuit Breakers
Amps
125A
Number of Poles
1
Max. Wire Size
2/0 AWG (fine stranded), 3/0 AWG (stranded)
Min. Wire Size
14 AWG, 6 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LV426972
- Zoro #
- G6560327
- UPC #
- 785901090861
- Country of Origin
- Korea, Republic of
Dimensions
- Max. Wire Size
- 2/0 AWG (fine stranded), 3/0 AWG (stranded)
- Min. Wire Size
- 14 AWG, 6 AWG
Details
- Item
- Lug Kit
- For Use With
- Powerpact(R) B Circuit Breakers
- Amps
- 125A
- Number of Poles
- 1
- Conductor Material
- steel
- Includes
- (1) EverLink Lug Connector Kit
- Number of Lugs Included
- 1
- Product Or Component Type
- cable connector
- Location Of Connection
- upstream || downstream
- Range Compatibility
- PowerPact (PowerPact B)
- Device Short Name
- connectors
- Connections - Terminals
- screw terminal - 1 2.5-95 mm2² AWG 14...AWG 3/0) - solid || screw terminal 2.5-95 mm2² AWG 14...AWG 3/0) - stranded || screw terminal 2.5-70 mm2² AWG 6...AWG 2/0) - fine stranded
- Line Rated Current
- 15-125 A copper || 15-100 A aluminium
Description
EverLink Lug Kit, Amps 100(Al)/125(Cu), Mounting Location Breaker, Number of Lugs Included 1, Number of Poles 1, Max. Wire Size 2/0 AWG (fine stranded), 3/0 AWG (stranded), Min. Wire Size 14 AWG, 6 AWG, Includes (1) EverLink Lug Connector Kit, For Use With Powerpact(R) B Circuit Breakers
