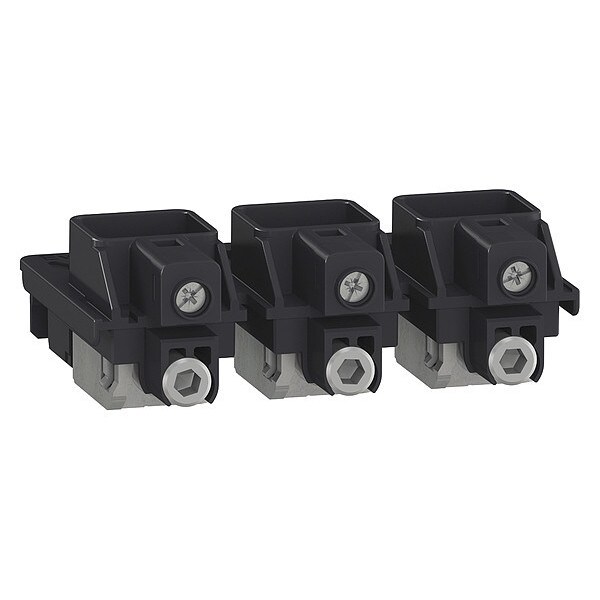

Lug Kit, Powerpact(R) B Circuit Breakers, 125A, 3 Poles
Mfr # LV426974
Zoro # G6569372
product price:Â
$
88.59
/ea
Key Features
For Use With
Powerpact(R) B Circuit Breakers
Amps
125A
Number of Poles
3
Max. Wire Size
2/0 AWG (fine stranded), 3/0 AWG (stranded)
Min. Wire Size
14 AWG, 6 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LV426974
- Zoro #
- G6569372
- UPC #
- 785901091226
- Country of Origin
- Korea, Republic of
Dimensions
- Max. Wire Size
- 2/0 AWG (fine stranded), 3/0 AWG (stranded)
- Min. Wire Size
- 14 AWG, 6 AWG
Details
- Item
- Lug Kit
- For Use With
- Powerpact(R) B Circuit Breakers
- Amps
- 125A
- Number of Poles
- 3
- Includes
- (1) Control Wire Tap Kit, (1) EverLink Lug Connector Kit
- Conductor Material
- steel
- Number of Lugs Included
- 1
- Location Of Connection
- downstream || upstream
- Line Rated Current
- 15-125 A copper || 15-100 A aluminium
- Connections - Terminals
- screw terminal - 1 2.5-95 mm2² AWG 14...AWG 3/0) - solid || screw terminal 2.5-95 mm2² AWG 14...AWG 3/0) - stranded || screw terminal 2.5-70 mm2² AWG 6...AWG 2/0) - fine stranded
- Range Compatibility
- PowerPact (PowerPact B)
- Product Or Component Type
- cable connector
- Device Short Name
- connectors
- Current Of Common
- 10 A 0.5-6 mm2² AWG 20...AWG 10), stranded or fine stranded || 10 A 1.5-6 mm2² AWG 20...AWG 10), rigid
Description
EverLink Lug Kit, Amps 100(Al)/125(Cu), Mounting Location Breaker, Number of Lugs Included 1, Number of Poles 3, Max. Wire Size 2/0 AWG (fine stranded), 3/0 AWG (stranded), Min. Wire Size 14 AWG, 6 AWG, Includes (1) Control Wire Tap Kit, (1) EverLink Lug Connector Kit, For Use With Powerpact(R) B Circuit Breakers
