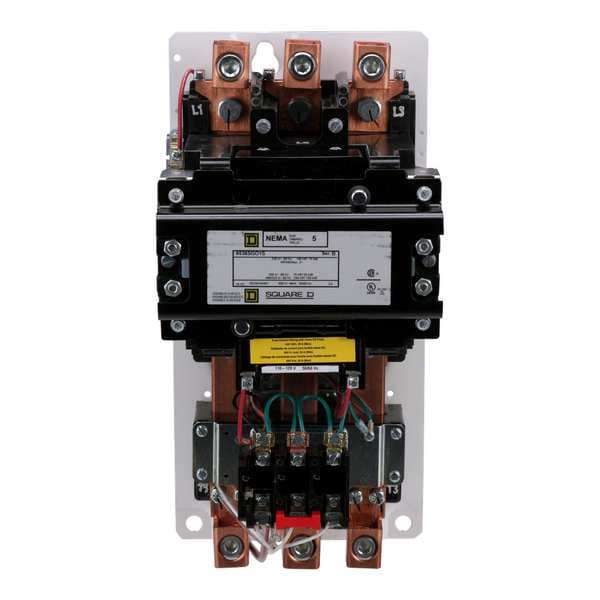

Square D Magnetic Motor Starter, Non-Reversing, No Auxiliary Contacts, 120V AC, 3 P, Screw Clamp 8536SGO1V02S - main

Magnetic Motor Starter, Non-Reversing, No Auxiliary Contacts, 120V AC, 3 P, Screw Clamp

  • Mfr # 8536SGO1V02S

  • Zoro # G1580372

product price:  $7,677.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8536SGO1V02S
Zoro #
G1580372
UPC #
785901854821
Country of Origin
Mexico

Dimensions

NEMA Size
5
Overall Depth
8.75 in
Overall Width
8.56 in
Overall Height
17.56 in

Details

Item
Magnetic Motor Starter
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed
HP @ 3 Phase - 575V
200 hp
Accessory Group
D3
Thermal Unit Code
B
Enclosure Type
Open
Operating Voltage
600V AC
Horsepower @ Three Phase - 240V AC
100 hp
Maximum Voltage Rating
600V AC
Overload Protection Type
Thermal
Horsepower @ Three Phase - 600V AC
200 hp
Operator
None
NEMA Enclosure Rating
No Enclosure
Current AC
270 A
Horsepower @ Three Phase - 480V AC
200 hp
Includes Pilot Light
No
Phase
Three
Includes Auxiliary Contacts
No
Frequency
50/60 Hz
Starter Style
NEMA
Horsepower @ Three Phase - 208V AC
75 hp
Control Units
No control units
Auxiliary Contacts
Without
Control Circuit Type
Separate Control Circuit
Short Circuit Current Rating
Circuit-breaker: 10 kA at 600 V AC; Fuse: 10 kA at 600 V AC
Horsepower Rating
75 HP 200 V AC; 100 HP 230 V AC; 200 HP 460 V AC; 200 HP 575 V AC

Description

Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting Not Applicable, Overload Protection Type Thermal, Minimum Overload Relay Current Setting Not Applicable, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC, Horsepower @ Three Phase - 600V AC 200 hp
