  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 0.16 A

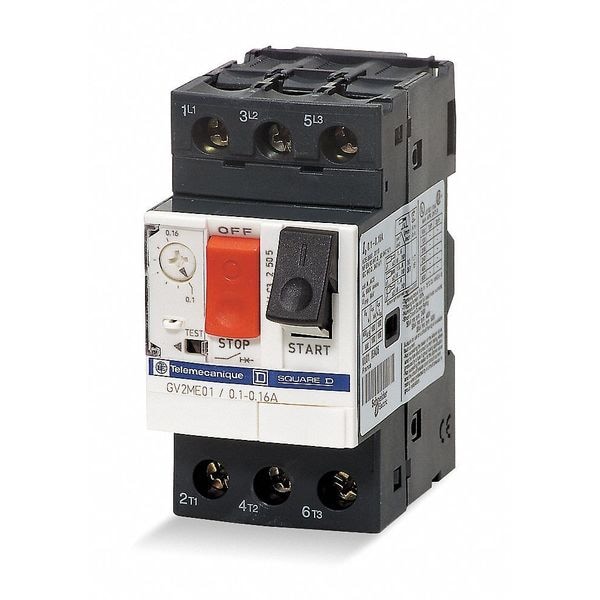

Square D Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 0.16 A GV2ME01 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 0.16 A

  • Mfr # GV2ME01

  • Zoro # G2579385

product price: $186.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
0.16 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME01
Zoro #
G2579385
UPC #
785901211884
Country of Origin
Thailand

Dimensions

Overall Width
1.77 in
Overall Height
3.5 in
Overall Depth
3.09 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
0.16 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Phase Loss Sensitivity
Yes
Description/Special Features
Screw Clamp Terminals, Single Unit
Pilot Light
Yes
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Product Name
TeSys GV2 || TeSys Deca
Ik Degree Of Protection
IK04
Device Short Name
GV2ME
Power Dissipation Per Pole
2.5 W
Range
TeSys Deca
Device Application
motor protection
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Fire Resistance
960°C IEC 60695-2-11
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Magnetic Tripping Current
1.5-1.5 A
Ambient Air Temperature For Storage
-40-80°C
Phase Failure Sensitivity
yes IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Network Type
AC
Rated Duty
continuous IEC 60947-4-1
Thermal Protection Adjustment Range
0.1-0.16 A IEC 60947-4-1
Tightening Torque
1.7 N.m screw clamp terminal
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Operating Altitude
6561.68 ft (2000 m)
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Color
dark grey
Climatic Withstand
IACS E10
Overload Protection Type
Thermal
Mechanical Operating Durability
100,000
Minimum Overload Relay Current Setting
0.1 A
IP Rating
IP20
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
140 Degrees F
Resistance Properties
Fire Resistant
Includes Pilot Light
No
Terminal Connection Type
Screw Clamp Terminals
Maximum Voltage Rating
600V AC
NEMA Enclosure Rating
No Enclosure
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Starter Style
IEC
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 100% 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 0.16 A, Series TeSys Deca, Maximum Overload Relay Current Setting 0.16 A, Minimum Overload Relay Current Setting 0.1 A, NEMA Enclosure Rating No Enclosure, Overload Protection Type Thermal, Starter Style IEC, Terminal Connection Type Screw Clamp Terminals, IP Rating IP20, Resistance Properties Fire Resistant, Frequency 50/60 Hz, Overall Depth 3.09 in
