  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 50 A

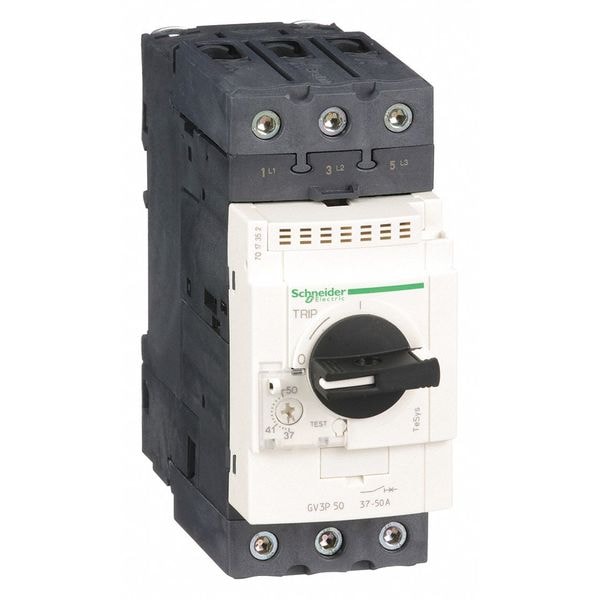

Square D Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 50 A GV3P50 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 50 A

  • Mfr # GV3P50

  • Zoro # G1310671

product price: $495.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
50 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV3P50
Zoro #
G1310671
UPC #
785901590699
Country of Origin
France

Dimensions

Overall Height
5.2 in
Overall Depth
5.35 in
Overall Width
2.17 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
50 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Pilot Light
No
HP @ 1 Phase - 120V
3 hp
HP @ 3 Phase - 575V
40 hp
Phase Loss Sensitivity
Yes
Description/Special Features
Class 10 Ambient-Compensated Thermal Overload Relay
HP @ 3 Phase - 208V
15 hp
HP @ 1 Phase - 230V
7 1/2 hp
Overload Relay Amp Setting
37 to 50A
HP @ 3 Phase - 460-575V
40
Operating Altitude
9842.52 ft (3000 m)
Electrical Durability
50000 cycles AC-3 415 V In
Suitability For Isolation
yes IEC 60947-1
Utilisation Category
AC-3 IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Fire Resistance
960°C IEC 60695-2-11
Ik Degree Of Protection
IK09 enclosure
Network Type
AC
Motor Power Kw
22-22 kW 400/415 V AC 50/60 Hz || 30-30 kW 500 V AC 50/60 Hz || 45-45 kW 690 V AC 50/60 Hz
Device Application
motor protection
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Device Short Name
GV3P
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
Range
TeSys Deca
Ambient Air Temperature For Storage
-40-80°C
Rated Duty
continuous IEC 60947-4-1
Product Name
TeSys GV3 || TeSys Deca
Color
dark grey
Thermal Protection Adjustment Range
37-50 A IEC 60947-4-1
Line Rated Current
50 A
Climatic Withstand
IACS E10
[Ith] Conventional Free Air Thermal Current
50 A IEC 60947-4-1
Tightening Torque
5 N.m screw clamp terminal
Magnetic Tripping Current
700-700 A
Phase Failure Sensitivity
yes IEC 60947-4-1
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz IEC 60947-2
Control Type
rotary handle
Power Dissipation Per Pole
8 W
Mechanical Robustness
shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
Electrical Operating Durability
50,000
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 208V AC
15 hp
Mechanical Operating Durability
50,000
Horsepower @ Three Phase - 600V AC
40 hp
Overload Protection Type
Thermal
Maximum Operating Temperature
140 Degrees F
Horsepower @ Single Phase - 120V AC
3 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
15 hp
Includes Pilot Light
No
Frequency
50/60 Hz
Terminal Connection Type
Screw Clamp Terminals
Resistance Properties
Fire Resistant
Starter Style
IEC
Horsepower @ Three Phase - 480V AC
30 hp
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Minimum Overload Relay Current Setting
37 A
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 3 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 50 A, Horsepower @ Three Phase - 208V AC 15 hp, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 30 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 40 hp, Maximum Overload Relay Current Setting 50 A
