  11. Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Type K, Class 2510 Series, NEMA 3R/7/9

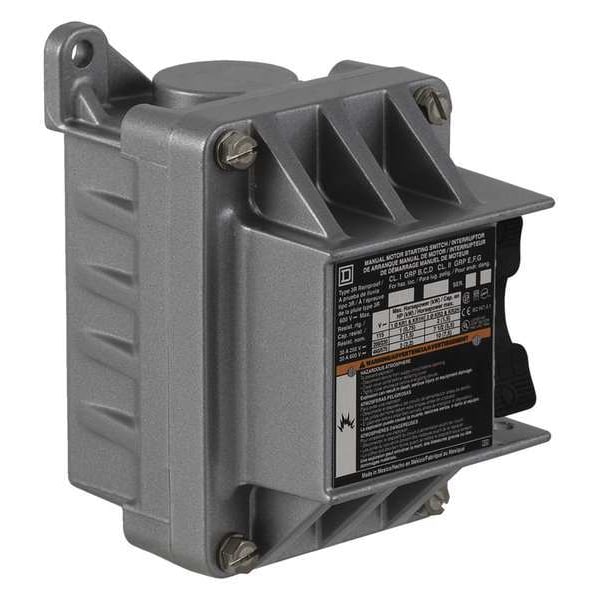

Square D Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Type K, Class 2510 Series, NEMA 3R/7/9 2510KR1 - main

Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Type K, Class 2510 Series, NEMA 3R/7/9

  • Mfr # 2510KR1

  • Zoro # G6476696

product price: $346.99
/ea
Free Shipping & Returns

Key Features

Operator
Toggle
Depth
4.25 in
Height
6.36 in
Width
3.95 in
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2510KR1
Zoro #
G6476696
UPC #
785901554639
Country of Origin
Mexico

Dimensions

Depth
4.25 in
Height
6.36 in
Width
3.95 in
Overall Depth
4.35 in
Hub Diameter
0.75 in
Overall Height
6.36 in
Overall Width
3.95 in

Details

Operator
Toggle
Item
Manual Motor Switch
Number of Poles
2
Description/Special Features
Hazardous Location
Standards
UL, CSA
HP @ 3 Phase - 460-575V
3 hp
Phase Loss Sensitivity
No
HP @ 1 Phase - 230V
2 hp
Motor Starter Type
non reversing
Phase
1
Maximum Horse Power Rating
2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Awg Gauge
AWG 14 to AWG 10 copper
Cable Entry
0.75 NPT (bottom)
Local Signalling
no indicator
NEMA Enclosure Rating
NEMA 3R, NEMA 7, NEMA 9
Horsepower @ Single Phase - 240V AC
2 hp
Terminal Connection Type
Screw
Hazardous Location Specification
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Includes Pilot Light
No
Horsepower @ Three Phase - 480V AC
3 hp
Maximum Voltage Rating
600V AC
Horsepower @ 230V DC
1 1/2 hp
Series
Type K
Starter Style
NEMA
Horsepower @ Three Phase - 600V AC
3 hp
Horsepower @ Three Phase - 240V AC
2 hp
Mounting Style
Surface
Current AC
30 A
Hub Type
Dead End
Horsepower @ Single Phase - 120V AC
2 hp

Description

Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 240V AC 2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Horsepower @ Three Phase - 600V AC 3 hp, Includes Pilot Light No, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals
