Shop SQUARE D

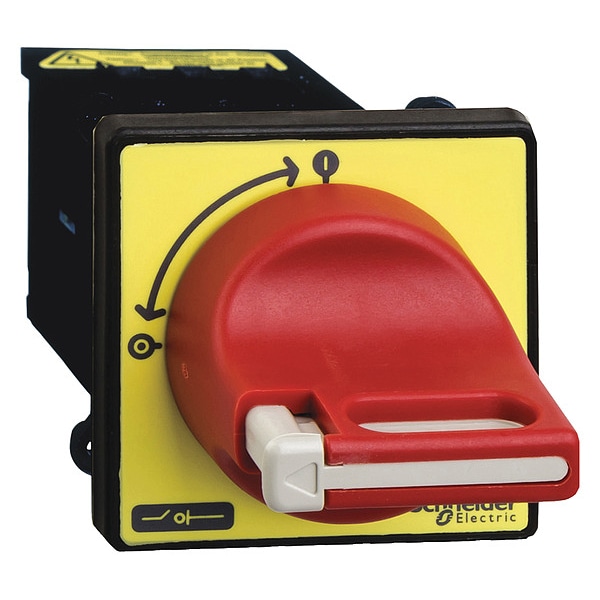

Mini Main Emerg Switch 20A

  • Mfr # VCDN20

  • Zoro # G0558455

product price:
$
100.99
/ea
Free Shipping & Returns

Key Features

Standards
IEC 60947-3
Height
60 mm
Rated Conditional Short-Circuit Current
6 kA 400 V 20 A aM || 6 kA 400 V 20 A gG
Device Short Name
VCDN
Marking
0 - 1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VCDN20
Zoro #
G0558455
UPC #
785901303916
Country of Origin
Korea, Republic of

Dimensions

Height
60 mm
Width
60 mm
Base Dimension
60 x 60 mm

Details

Item
Switch
Standards
IEC 60947-3
Rated Conditional Short-Circuit Current
6 kA 400 V 20 A aM || 6 kA 400 V 20 A gG
Device Short Name
VCDN
Marking
0 - 1
Suitability For Isolation
yes
Control Type
rotary handle
Ip Degree Of Protection
IP65
Product Certifications
GL || CSA || UL || CCC || UKCA
Handle Colour
red
Device Composition
handle || switch
Mechanical Durability
50000 cycles
Making Capacity
200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
Rotary Handle Mounting Style
direct
Intermittent Duty Class
30
Fixing Mode
hole 22.5 mm handle
Performance Level
standard
Tightening Torque
power circuit 0.7-0.7 N.m screw clamp terminals
Mounting Support
handle door || switch door
Connections - Terminals
power circuit screw clamp terminals 4-4 mm² flexible - with cable end || power circuit screw clamp terminals 4-4 mm² solid
[Ie] Rated Operational Current
11 A AC-23)400 V
Handle Front Plate Colour
yellow
[Icw] Rated Short-Time Withstand Current
140 A 400 V 1 s
Network Type
DC || AC
Poles Description
3P
Rated Operational Power In W
4 kW 230 to 240 V AC-23A) || 5.5 kW 400 to 415 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A) || 3 kW 230 to 240 V AC-3) || 4 kW 400 to 415 V AC-3) || 5.5 kW 500 V AC-3) || 5.5 kW 690 V AC-3)
Contacts Type And Composition
3 NO
Product Or Component Type
emergency stop switch disconnector
[Icm] Rated Short-Circuit Making Capacity
0.5 kA 400 V at Ipeak
Range
TeSys
Protective Treatment
TC
Product Name
TeSys Mini-VARIO
[Ithe] Conventional Enclosed Thermal Current
16 A
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Electrical Durability
30000 cycles DC-1 to 5 || 50000 cycles AC-21
Breaking Capacity
200 kA 400 V AC-21A) || 200 kA 400 V AC-22A) || 200 kA 400 V AC-23A)
Mechanical Robustness
shocks 11 ms 15 gn) IEC 60068-2-27 || vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6
[Ith] Conventional Free Air Thermal Current
20 A
Rated Conditional Short Circuit Current
6 kA 400 V 20 A aM; 6 kA 400 V 20 A gG

Description

Switch
