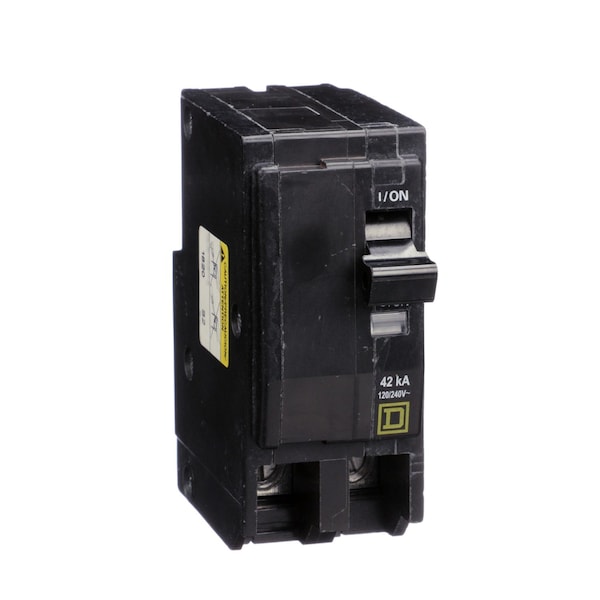

Square D Miniature Circuit Breaker, 80A, 2 Pole, 120/240V AC, 42kA at 120/240V AC QOH280 - main

Miniature Circuit Breaker, 80A, 2 Pole, 120/240V AC, 42kA at 120/240V AC

  • Mfr # QOH280

  • Zoro # G3573784

product price: $545.99
/ea
Free Shipping & Returns

Key Features

Series
QO
Voltage
120/240V AC
Amps
80A
Number of Poles
2
AC Voltage Rating
120/240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QOH280
Zoro #
G3573784
UPC #
-
Country of Origin
Mexico

Dimensions

Width
57 mm
Depth
74 mm
Height
89 mm
Frame Size
QO

Details

Item
Miniature Circuit Breaker
Series
QO
Voltage
120/240V AC
Amps
80A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
42kA at 120/240V AC
Terminal Connection
Lugs
Description/Special Features
Mercury Free
Standards
UL Listed, CSA
For Use With
QO Load Centers, QO Load Center Accessory
Poles Description
2P
Breaking Capacity
42 kA 120/240 V AC
Line Rated Current
80 A
Number of Spaces Required
2
Circuit Breaker Application
HACR rated
Electrical Connection
box lugs
Range of Product
QO
Tightening Torque
5.6-5.6 N.m
Ambient Air Temperature For Operation
40°C
Circuit Breaker Actuator
Toggle
Trip Type
Thermal Magnetic, Trip Free
Instantaneous Trip
Trip Free

Description

Mini CB,QO,80 A,2P,120/240 V,42 kA,
