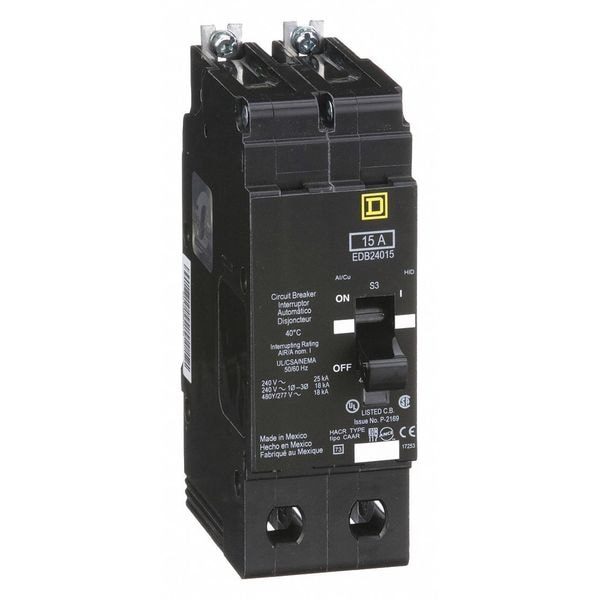

Miniature Circuit Breaker, E FRAME Series, 15A, 2 Pole, 277/480V AC, 25kA at 120V AC

  • Mfr # EDB24015

  • Zoro # G2966275

product price:
$
447.99
/ea
Free Shipping & Returns

Key Features

Series
E FRAME
Number of Poles
2
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EDB24015
Zoro #
G2966275
UPC #
785901879008
Country of Origin
Korea, Republic of

Dimensions

Frame Size
125A/EDB
Width
1.96 in
Depth
4.05 in
Height
5.66 in
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Max. Wire Size
6 AWG
Length
5.7 in

Details

Item
Miniature Circuit Breaker
Series
E FRAME
Amps
15A
Number of Poles
2
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
25kA at 120V AC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
cULus
For Use With
Square D NF Panelboards
Interrupt Rating
18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC
Application
HACR rated Applications, HID rated Applications
High Amp Trip Setting
875 A
Features
Mercury Free
Compatible Panelboard/Load Center Series
NF
Max. Operating Temp.
104 Degrees F
Holding Current
270 A
Protection Type
Overload; Short-circuit
Breaking Capacity Code
D
Breaking Capacity
18 kA 277 V AC; 25 kA 240 V AC; 18 kA 480Y/277 V AC; 25 kA 120 V AC; 25 kA 120/240 V AC
AWG Gauge
AWG 12 to AWG 6 aluminium; AWG 14 to AWG 6 copper
Tightening Torque
30.09 lbf.in (3.4 N.m) 0.00 to 0.02 in² (2.5 to 16 mm²) (AWG 14 to AWG 6)
Circuit Breaker Application
HACR rated; HID rated
Ambient Air Temperature For Operation
104°F (40°C)
Product Destination
NF panelboard
Local Signalling
Trip indicator
Module Type
E-Frame
Voltage
480Y/277 VAC

Description

Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 1.96 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
