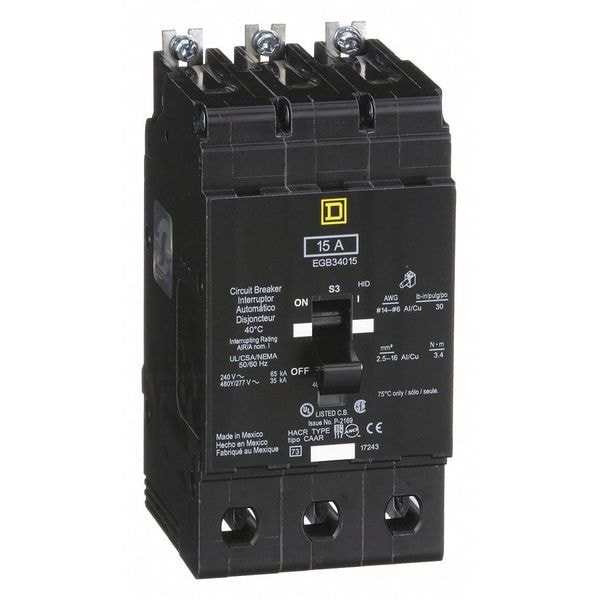

Miniature Circuit Breaker, E FRAME Series, 15A, 3 Pole, 277/480V AC, 65kA at 120V AC
Mfr # EGB34015
Zoro # G6538962
product price:Â
$
1,006.99
/ea
Free Shipping & Returns
Key Features
Series
E FRAME
Number of Poles
3
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Phase
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- EGB34015
- Zoro #
- G6538962
- UPC #
- 785901311133
- Country of Origin
- Korea, Republic of
- Item
- Miniature Circuit Breaker
- Series
- E FRAME
- Amps
- 15A
- Number of Poles
- 3
- AC Voltage Rating
- 277/480V AC
- Circuit Breaker Type
- Standard
- Phase
- 3
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 65kA at 120V AC
- Trip Type
- Thermal Magnetic
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- For Use With
- Square D NF Panelboards
- Standards
- cULus
- High Amp Trip Setting
- 875 A
- Features
- Mercury Free
- Application
- HID rated Applications, HACR rated Applications
- Interrupt Rating
- 35 kA at 480Y/277V AC, 65 kA at 120/240V AC
- Compatible Panelboard/Load Center Series
- NF
- Min. Operating Temp.
- 77 Degrees F
- Max. Operating Temp.
- 104 Degrees F
- Voltage
- 480Y/277 VAC
Description
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EGB, Max. AIR Rating 35kA at 277/488V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EGB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Min. Operating Temp. 77 Degrees F
