  9. Miniature Circuit Breaker, E FRAME Series, 60A, 2 Pole, 277/480V AC, 25kA at 120V AC

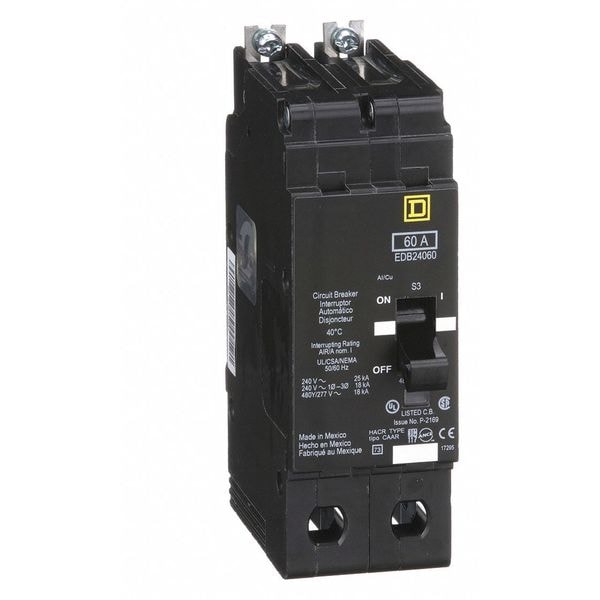

Square D Miniature Circuit Breaker, E FRAME Series, 60A, 2 Pole, 277/480V AC, 25kA at 120V AC EDB24060 - main

Miniature Circuit Breaker, E FRAME Series, 60A, 2 Pole, 277/480V AC, 25kA at 120V AC

  • Mfr # EDB24060

  • Zoro # G2445484

product price: $504.99
/ea
Free Shipping & Returns

Key Features

Series
E FRAME
Number of Poles
2
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EDB24060
Zoro #
G2445484
UPC #
785901879091
Country of Origin
Mexico

Dimensions

Frame Size
125A/EDB
Width
3.92 in
Depth
4.05 in
Height
5.66 in
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Max. Wire Size
2 AWG
Length
5.66 in

Details

Item
Miniature Circuit Breaker
Series
E FRAME
Amps
60A
Number of Poles
2
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
25kA at 120V AC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
For Use With
Square D NF Panelboards
Standards
cULus
Interrupt Rating
18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC
Features
Mercury Free
Application
HACR rated Applications
High Amp Trip Setting
2300 A
Compatible Panelboard/Load Center Series
NF
Max. Operating Temp.
104 Degrees F
Voltage
480Y/277 VAC
Circuit Breaker Application
HACR rated
Module Type
E-Frame
Number Of Spaces
3
Local Signalling
Trip indicator
Breaking Capacity Code
D
Tightening Torque
34.52 lbf.in (3.9 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 49.56 lbf.in (5.6 N.m) 0.02 to 0.11 in² (10 to 70 mm²) (AWG 8 to AWG 2/0)
Holding Current
1000 A
AWG Gauge
AWG 12 to AWG 2/0 aluminium; AWG 14 to AWG 2/0 copper
Protection Type
Overload; Short-circuit
Ambient Air Temperature For Operation
122°F (50°C)
Product Destination
NF panelboard
Breaking Capacity
18 kA 277 V AC; 25 kA 240 V AC; 18 kA 480Y/277 V AC; 25 kA 120 V AC; 25 kA 120/240 V AC

Description

Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
