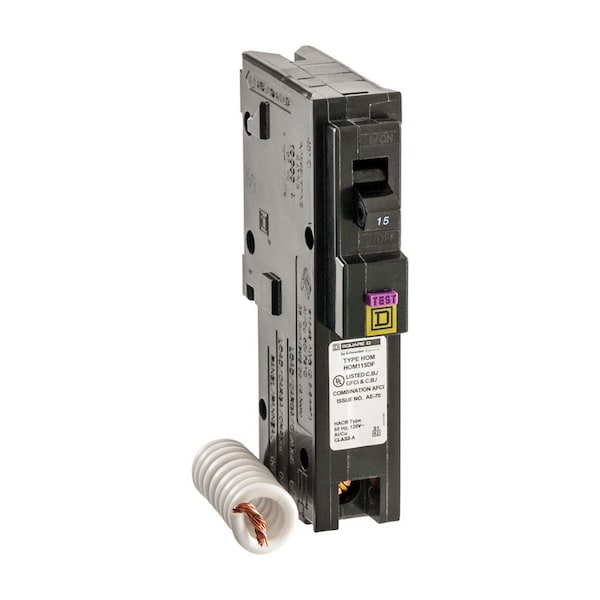

Miniature Circuit Breaker, HOM Series, 15A, 1 Pole, 120V AC, 10kA
Mfr # HOM115DFC
Zoro # G9458107
Key Features
Specifications
Product Information
- MFR #
- HOM115DFC
- Zoro #
- G9458107
- UPC #
- 785901986010
- Country of Origin
- Mexico
Dimensions
- Width
- 1 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Max. Wire Size
- 8 AWG (Cu/Al), 10 AWG (Cu)
- Min. Wire Size
- 14 AWG (Cu/Al), 14 AWG (Cu)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOM
- Amps
- 15 A
- Number of Poles
- 1
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Standard
- Terminal Connection
- Screw Clamps
- DC Voltage Rating
- Not Rated
- Application
- HACR rated Applications
- Standards
- UL Listed
- Features
- Mercury Free
Description
Square D by Schneider Electric Homeline 15 amp 1-pole Dual Function Circuit Breaker is a space and labor saving device, engineered to meet prevailing NEC requirements. This device combines 2 critical technologies, Combination Arc Fault protection and Ground Fault protection (class A) in a single, easy-to-install device. The NEC now requires both Combination Arc Fault and Ground Fault protection on all 1-Pole, 15 amp and 20 amp kitchen and laundry circuits. Prior to the release of this new device, a contractor or homeowner's only choice would have been to use a Combination Arc Fault circuit breaker in conjunction with an expensive, bulky ground fault receptacle. The new dual function circuit breakers help reduce cost and eliminate the hassle of using 2 separate devices to provide this essential protection. It's a win for contractors and homeowners alike. Like all Square D CAFI circuit breakers, it is integrated with time saver diagnostics, a unique feature that provides additional circuit information and minimizes troubleshooting at the touch of a button.
- • Compatible with all Homeline load centers
- • 120V AC
- • 10000 AIR
- • ANSI certified and UL listed
- •
